NSK 6313ZZ Bearing

NSK 6313ZZ Deep groove ball bearings

Also known as : 6313ZZ, 6313-2Z

  • Inside Diameter: 65 mm
  • Outside Diameter: 140 mm
  • Width: 33 mm
  • Basic dynamic load rating: 92.5 kN
  • Basic static load rating: 60 kN

Inquire Now


NSK 6313ZZ Bearing

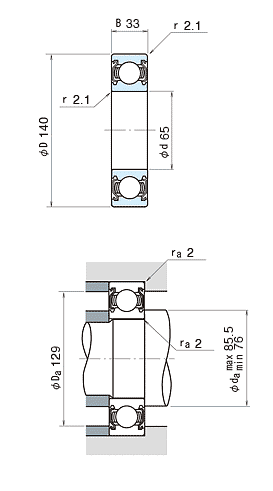

NSK 6313ZZ Bearing details

model 6313ZZ
d 65 mm
D 140 mm
B 33 mm
rmin. 2.1 mm
Cr 92500 N
9450 kgf
C0r 60000 N
6100 kgf
Limiting speeds 4800 min-1 (Grease)
f0 13.2 (Factor)
da min 76 mm
da max 85.5 mm
Da 129 mm
ra 2 mm
Mass 2.110 kg (approx.)

NSK 6313ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.

NSK 6313ZZ bearing cross reference

NSK 6313VV bearing
65mm x 140mm x 33mm
SKF 6313-2Z bearing
65mm x 140mm x 33mm
NSK 6813 bearing
65mm x 85mm x 10mm
NSK 6913 bearing
65mm x 90mm x 13mm
NSK 16013 bearing
65mm x 100mm x 11mm
NSK 6013 bearing
65mm x 100mm x 18mm
NSK 6213 bearing
65mm x 120mm x 23mm
NSK 6313 bearing
65mm x 140mm x 33mm
NSK 6813ZZ bearing
65mm x 85mm x 10mm
NSK 6913ZZ bearing
65mm x 90mm x 13mm
NSK 6013ZZ bearing
65mm x 100mm x 18mm
NSK 6213ZZ bearing
65mm x 120mm x 23mm
