NSK 635 bearing | 5.0x19x6.0mm
Also known as : 635
- Inside Diameter: 5 mm
- Outside Diameter: 19 mm
- Width: 6 mm
- Basic dynamic load rating: 2.34 kN
- Basic static load rating: 0.885 kN
NSK 635 Bearing
NSK 635 Bearing details
| NSK number | 635 |
|---|---|
| Type | Miniature ball bearings, Open type |
| d | 5.0 mm |
| D | 19 mm |
| B | 6.0 mm |
| rmin. | 0.30 mm |
| Cr | 2340 N |
| C0r | 885 N |
| Limiting speeds | 32000 min-1 (Grease) |
| Limiting speeds | 40000 min-1 (Oil) |
| da | 7.0 mm |
| Da | 17.0 mm |
| ra | 0.30 mm |
| Mass | 8.56 g (approx.) |
Nodes bearings have NSK 635 bearings in stock, Open type.
NSK 635 bearing cross reference

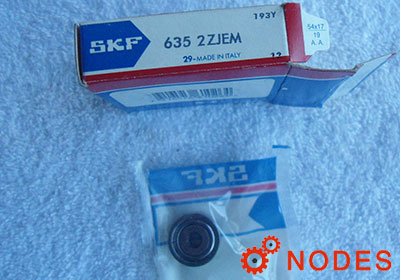

SKF 635-2Z bearing
5mm x 19mm x 6mm
FAG 635 bearing
5mm x 19mm x 6mm
TIMKEN 635-ZZ bearing
5mm x 19mm x 6mm
TIMKEN 635-2RZ bearing
5mm x 19mm x 6mm
TIMKEN 635 bearing
5mm x 19mm x 6mm
NSK MR85 bearing
5.0mm x 8mm x 2.0mm
NSK MR95 bearing
5.0mm x 9mm x 2.5mm
NSK MR105 bearing
5.0mm x 10mm x 3.0mm
NSK 685 bearing
5.0mm x 11mm x 3.0mm
NSK 695 bearing
5.0mm x 13mm x 4.0mm
NSK 605 bearing
5.0mm x 14mm x 5.0mm
