NSK 6844M Deep groove ball bearings
Also known as : 6844M, 61844M
- Inside Diameter: 220 mm
- Outside Diameter: 270 mm
- Width: 24 mm
- Basic dynamic load rating: 76.5 kN
- Basic static load rating: 107 kN
NSK 6844 Bearing

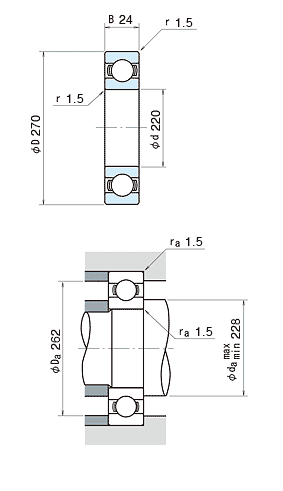

NSK 6844 Bearing details
| model | 6844M |
|---|---|
| d | 220 mm |
| D | 270 mm |
| B | 24 mm |
| rmin. | 1.5 mm |
| Cr |
76500 N 7800 kgf |
| C0r |
107000 N 10900 kgf |
| Limiting speeds | 1900 min-1 (Grease) |
| Limiting speeds | 2400 min-1 (Oil) |
| f0 | 17.4 (Factor) |
| da min | 228.0 mm |
| da max | 0.0 mm |
| Da | 262.0 mm |
| ra | 1.5 mm |
| Mass | 2.900 kg (approx.) |
NSK 6844M ball bearings, deep groove ball bearing, Single-Row, Open type.
NSK 6844 bearing cross reference
NSK 16044 bearing
220mm x 340mm x 37mm
NSK 6044 bearing
220mm x 340mm x 56mm
NSK 6244 bearing
220mm x 400mm x 65mm
NSK 6344 bearing
220mm x 460mm x 88mm
NSK 6044ZZS bearing
220mm x 340mm x 56mm
FAG 61844 bearing
220mm x 270mm x 24mm
