NSK 6856M Bearing

NSK 6856M Deep groove ball bearings

Also known as : 6856M, 61856-M

  • Inside Diameter: 280 mm
  • Outside Diameter: 350 mm
  • Width: 33 mm
  • Basic dynamic load rating: 133 kN
  • Basic static load rating: 191 kN

Inquire Now


NSK 6856M Bearing

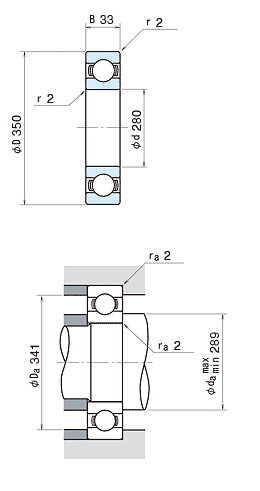

NSK 6856M Bearing details

model 6856M
d 280 mm
D 350 mm
B 33 mm
rmin. 2.0 mm
Cr 133000 N
13600 kgf
C0r 191000 N
19500 kgf
Limiting speeds 1500 min-1 (Grease)
Limiting speeds 1700 min-1 (Oil)
f0 17.3 (Factor)
da min 289.0 mm
da max 0.0 mm
Da 341.0 mm
ra 2.0 mm
Mass 7.200 kg (approx.)

NSK 6856 deep groove ball bearings, deep groove ball bearing, Single-Row, Open type.

NSK 6856M bearing cross reference

NSK 6956 bearing
280mm x 380mm x 46mm
NSK 16056 bearing
280mm x 420mm x 44mm
NSK 6056 bearing
280mm x 420mm x 65mm
NSK 6256 bearing
280mm x 500mm x 80mm
NSK 6356 bearing
280mm x 580mm x 108mm
SKF 61856 bearing
280mm x 350mm x 33mm
FAG 61856 bearing
280mm x 350mm x 33mm
FAG 61856-MA bearing
280mm x 350mm x 33mm
