NSK 6934 Bearing

NSK 6934 Deep groove ball bearings

Also known as : 6934, 61934

• Inside Diameter: 170 mm
• Outside Diameter: 230 mm
• Width: 28 mm
• Basic dynamic load rating: 86 kN
• Basic static load rating: 97 kN

Inquire Now

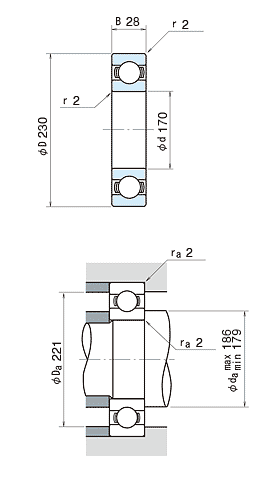

NSK 6934 Bearing

model	6934
d	170 mm
D	230 mm
B	28 mm
rmin.	2.0 mm
Cr	86000 N 8750 kgf
C0r	97000 N 9850 kgf
Limiting speeds	2400 min-1 (Grease)
Limiting speeds	2800 min-1 (Oil)
f0	16.7 (Factor)
da min	179.0 mm
da max	186.0 mm
Da	221.0 mm
ra	2.0 mm
Mass	3.340 kg (approx.)

NSK 6934 ball bearings, deep groove ball bearing, Single-Row, Open type.
