7211CTYNSULP4 NSK super precision bearings
Also known as :
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 21 mm
- Basic dynamic load rating: 55.5 kN
- Basic static load rating: 40 kN
NSK 7211CTYNSULP4 Bearing
NSK 7211CTYNSULP4 Bearing details
| Part Number | 7211CTYNSULP4 | |
|---|---|---|
| Brand | NSK | |
| Description |
Angular Contact Ball Bearings C :Contact Angle of 15° |
|
| Boundary Dimensions (mm) | ||
| d | 55 | |
| D | 100 | |
| B | 21 | |
| r (min.) | 1.5 | |
| r1 (min.) | 1 | |
| Basic Load Ratings (kN) | ||
| Cr | 55.5 | Dynamic |
| C0r | 40 | Static |
| Limiting Speeds (min-1) | ||
| Grease | 14900 | |
| Oil | 22600 | |
| Calculation data | ||
| Permissible axial load | 27.6 kN | |
| Contact Angle | 15 | |
| Factor f0 | 14.5 | |
| a | 20.9 mm | Effective load center |
| Reference Dimensions (mm) | ||
| da (min.) | 64 | |
| Da (max.) | 91 | |
| Db (max.) | 94 | |
| ra (max.) | 1.5 | |
| rb (max.) | 0.8 | |
NSK 7211CTYNSULP4 bearing cross reference
FAG 7211-B-XL-JP bearing
55mm x 100mm x 21mm
FAG 7211-B-XL-MP bearing
55mm x 100mm x 21mm

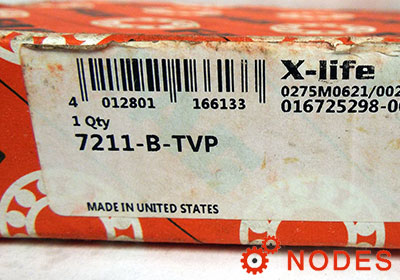

FAG 7211-B-TVP bearing
55mm x 100mm x 21mm
NSK 7211B bearing
55mm x 100mm x 21mm
NSK 7211C bearing
55mm x 100mm x 21mm
NSK 7211A bearing
55mm x 100mm x 21mm
NSK 7211ADB bearing
55mm x 100mm x 21mm
NSK 7211BDB bearing
55mm x 100mm x 21mm
NSK 7211CDB bearing
55mm x 100mm x 21mm
NSK 7211ADF bearing
55mm x 100mm x 21mm
NSK 7211BDF bearing
55mm x 100mm x 21mm
