NSK 22205CE4 Bearing

NSK 22205CE4 Spherical roller bearings

Also known as : 22205CE4, 22205CC/W33

  • Inside Diameter: 25 mm
  • Outside Diameter: 52 mm
  • Width: 18 mm
  • Basic dynamic load rating: 37.5 kN
  • Basic static load rating: 37 kN

Inquire Now


NSK 22205CE4 Bearing

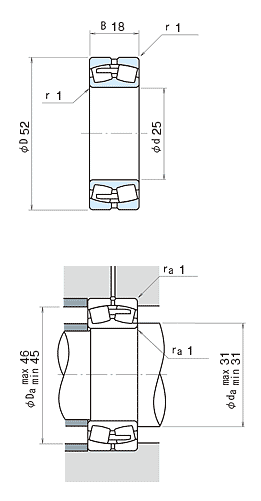

NSK 22205CE4 Bearing details

model 22205CE4
d 25 mm
D 52 mm
B 18.0 mm
rmin. 1.0 mm
Cr 37500 N
3850 kgf
C0r 37000 N
3800 kgf
Limiting speeds 7100 min-1 (Grease)
Limiting speeds 9000 min-1 (Oil)
da min 31 mm
da max 31.000 mm
Da max 46 mm
Da min 45 mm
ra 1.0 mm
Constant 0.35
Y2 2.9 Axial Load Factors
Y3 1.9 Axial Load Factors
Y0 1.9 Axial Load Factors
Mass 0.17 kg (approx.)

NSK 22205CE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.

NSK 22205CE4 bearing cross reference

FAG 22205-E1-XL bearing
25mm x 52mm x 18mm
SKF 22205E/C3 bearing
25mm x 52mm x 18mm
NSK 21305CDE4 bearing
25mm x 62mm x 17.0mm
NSK 21305CDKE4 bearing
25mm x 62mm x 17.0mm
NSK 22205CE4C3 bearing
25mm x 52mm x 18.0mm
NSK 22205CKE4 bearing
25mm x 52mm x 18.0mm
FAG 22205-E1-XL-K bearing
25mm x 52mm x 18mm
NTN 22205EAW33 bearing
25mm x 52mm x 18mm
NTN 22205EMW33 bearing
25mm x 52mm x 18mm
NTN 22205EAKW33 bearing
25mm x 52mm x 18mm
NTN 22205EMKW33 bearing
25mm x 52mm x 18mm
