NSK HR32034XJ Tapered roller bearings
Also known as : HR32034XJ, 32034
- Inside Diameter: 170 mm
- Outside Diameter: 260 mm
- Width: 57 mm
- Basic dynamic load rating: 505 kN
- Basic static load rating: 890 kN
NSK HR32034XJ Bearing

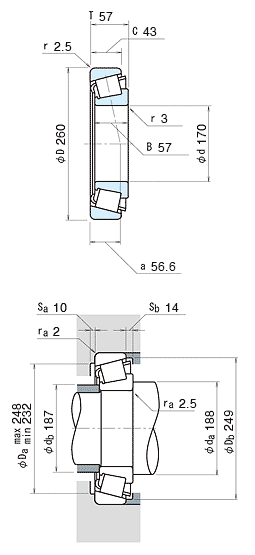

NSK HR32034XJ Bearing details
| model | HR32034XJ |
|---|---|
| d | 170 mm |
| D | 260 mm |
| T | 57 mm |
| B | 57 mm |
| C | 43 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
505000 N 51500 kgf |
| C0r |
890000 N 90500 kgf |
| Limiting speeds |
1200 min-1 (Grease) |
| Limiting speeds |
1700 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
4EC |
| e | 0.44 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.74 (Axial Load Factors) |
| Mass | 10.6 kg (approx.) |
NSK HR32034XJ roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32034XJ bearing cross reference
FAG 32034-X-XL bearing
170mm x 260mm x 57mm
FAG 32034-X-XL-DF-A0-40 bearing
170mm x 260mm x 114mm
FAG 32034-X-XL-DF-A200-250 bearing
170mm x 260mm x 114mm
FAG 32034-X-XL-DF-A230-270 bearing
170mm x 260mm x 114mm
FAG 32034-X-XL-DF-A330-380 bearing
170mm x 260mm x 114mm
FAG 32034-X-XL-DF-A440-490 bearing
170mm x 260mm x 114mm
NTN 32034XU bearing
170mm x 260mm x 57.0mm
NSK 32934 bearing
170mm x 230mm x 38mm
NSK HR32934J bearing
170mm x 230mm x 38mm
NSK HR30234J bearing
170mm x 310mm x 57mm
NSK HR32234J bearing
170mm x 310mm x 91mm
