NSK HR32213J Tapered roller bearings
Also known as : HR32213J, 32213
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 32.75 mm
- Basic dynamic load rating: 157 kN
- Basic static load rating: 202 kN
NSK HR32213J Bearing

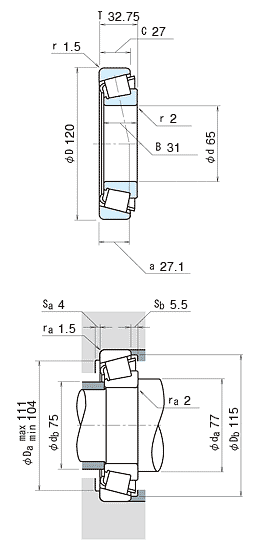

NSK HR32213J Bearing details
| model | HR32213J |
|---|---|
| d | 65 mm |
| D | 120 mm |
| T | 32.75 mm |
| B | 31 mm |
| C | 27 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
157000 N 16000 kgf |
| C0r |
202000 N 20600 kgf |
| Limiting speeds |
3000 min-1 (Grease) |
| Limiting speeds |
4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EC |
| e | 0.41 (constant) |
| y1 | 1.5 (Axial Load Factors) |
| y0 | 0.81 (Axial Load Factors) |
| Mass | 1.55 kg (approx.) |
NSK HR32213J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32213J bearing cross reference
NSK HR30213J bearing
65mm x 120mm x 24.75mm
FAG 32213-A bearing
65mm x 120mm x 32.75mm
FAG 32213-B bearing
65mm x 120mm x 32.75mm
FAG 32213-B-XL bearing
65mm x 120mm x 32.75mm
FAG 32213-XL bearing
65mm x 120mm x 32.75mm
NTN 32213U bearing
65mm x 120mm x 31.0mm
NSK HR32913J bearing
65mm x 90mm x 17mm
NSK HR32013XJ bearing
65mm x 100mm x 23mm
NSK HR33013J bearing
65mm x 100mm x 27mm
NSK HR33113J bearing
65mm x 110mm x 34mm
NSK HR33213J bearing
65mm x 120mm x 41mm
