NSK HR32218J Tapered roller bearings
Also known as : HR32218J, 32218
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 42.5 mm
- Basic dynamic load rating: 256 kN
- Basic static load rating: 350 kN
NSK HR32218J Bearing

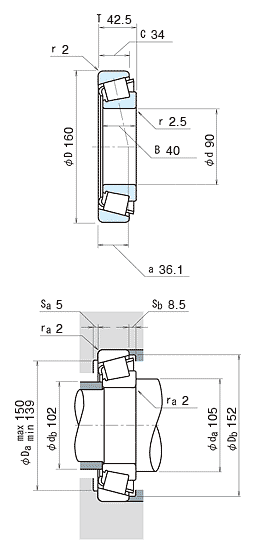

NSK HR32218J Bearing details
| model | HR32218J |
|---|---|
| d | 90 mm |
| D | 160 mm |
| T | 42.5 mm |
| B | 40 mm |
| C | 34 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
256000 N 26100 kgf |
| C0r |
350000 N 35500 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
3000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 3.41 kg (approx.) |
NSK HR32218J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32218J bearing cross reference
NSK HR30318J bearing
90mm x 190mm x 46.5mm
NSK HR32318J bearing
90mm x 190mm x 67.5mm
FAG 32218-A bearing
90mm x 160mm x 42.5mm
FAG 32218-XL bearing
90mm x 160mm x 42.5mm
FAG 32218-XL-DF-A220-270 bearing
90mm x 160mm x 85mm
NTN 32218U bearing
90mm x 160mm x 40.0mm
NSK HR32918J bearing
90mm x 125mm x 23mm
NSK HR32018XJ bearing
90mm x 140mm x 32mm
NSK HR33018J bearing
90mm x 140mm x 39mm
NSK HR33118J bearing
90mm x 150mm x 45mm
NSK HR30218J bearing
90mm x 160mm x 32.5mm
