NSK HR32304J Bearing

NSK HR32304J roller bearings | 20x52x22.25 mm

Also known as : 32304J2

  • Inside Diameter: 20 mm
  • Outside Diameter: 52 mm
  • Width: 22.25 mm
  • Basic dynamic load rating: 45.5 kN
  • Basic static load rating: 47.5 kN

Inquire Now


NSK HR32304J Bearing

NSK HR32304J Bearing details

model HR32304J
d 20 mm
D 52 mm
T 22.25 mm
B 21 mm
C 18 mm
Cone rmin. 1.5 mm
Cup rmin. 1.5 mm
Cr 45500 N
4650 kgf
C0r 47500 N
4850 kgf
Limiting speeds
8000 min-1 (Grease)
Limiting speeds
11000 min-1 (Oil)
ISO355
Dimensions Series approx.
2FD
e 0.3 (constant)
y1 2 (Axial Load Factors)
y0 1.1 (Axial Load Factors)
Mass 0.241 kg (approx.)

NSK HR32304J roller bearings, tapered roller bearing, Single-Row Metric Design.

NSK HR32304J bearing cross reference

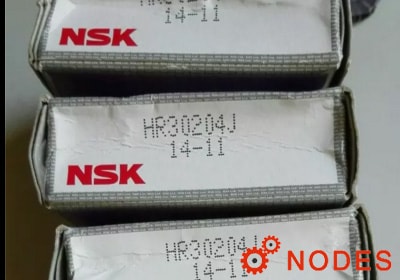

NSK HR30204J bearing
20mm x 47mm x 15.25
FAG 32304-A bearing
20mm x 52mm x 22.25mm

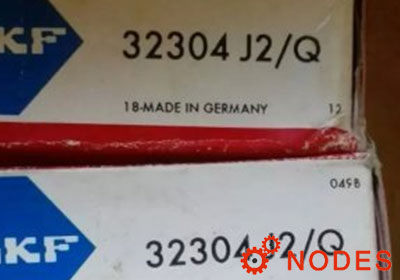

SKF 32304 bearing
20mm x 52mm x 22.25mm
NTN 4T-32304 bearing
20mm x 52mm x 21.0mm
