NSK HR32317J Tapered roller bearings
Also known as : HR32317J, 32317
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 63.5 mm
- Basic dynamic load rating: 410 kN
- Basic static load rating: 535 kN
NSK HR32317J Bearing

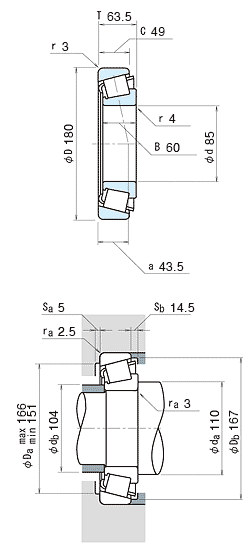

NSK HR32317J Bearing details
| model | HR32317J |
|---|---|
| d | 85 mm |
| D | 180 mm |
| T | 63.5 mm |
| B | 60 mm |
| C | 49 mm |
| Cone rmin. | 4 mm |
| Cup rmin. | 3 mm |
| Cr |
410000 N 42000 kgf |
| C0r |
535000 N 54500 kgf |
| Limiting speeds |
2000 min-1 (Grease) |
| Limiting speeds |
2800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2GD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 7.31 kg (approx.) |
NSK HR32317J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32317J bearing cross reference
NSK HR32217J bearing
85mm x 150mm x 38.5mm
FAG 32317-A bearing
85mm x 180mm x 63.5mm
FAG 32317-B bearing
85mm x 180mm x 63.5mm
FAG 32317-XL bearing
85mm x 180mm x 63.5mm
FAG 32317-B-XL bearing
85mm x 180mm x 63.5mm
SKF 32317 bearing
85mm x 180mm x 63.5mm
NTN 32317U bearing
85mm x 180mm x 60.0mm
NSK HR32917J bearing
85mm x 120mm x 23mm
NSK HR32017XJ bearing
85mm x 130mm x 29mm
NSK HR33017J bearing
85mm x 130mm x 36mm
NSK HR33117J bearing
85mm x 140mm x 41mm
