NSK EP47KWD01 Bearing

NSK EP47KWD01 wheel bearing | 47x82x57.5mm

Also known as : EP47KWD01

  • Inside Diameter: 47 mm
  • Outside Diameter: 82 mm
  • Width: 57.5 mm
  • Basic dynamic load rating: 95 kN
  • Basic static load rating: 138 kN

Inquire Now

NSK EP47KWD01 Bearing

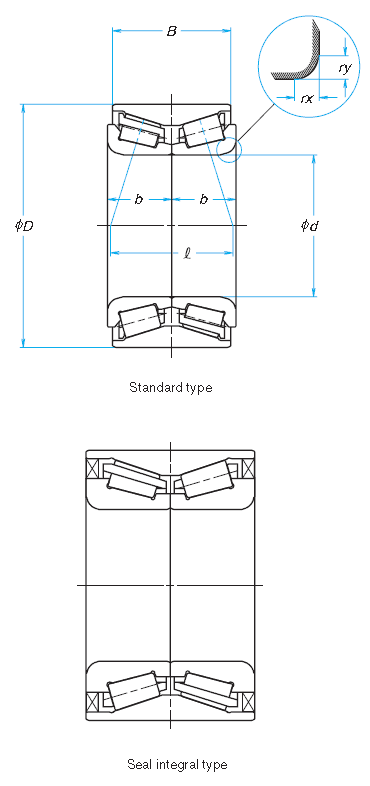

NSK EP47KWD01 Bearing details

Bearing reference EP47KWD01
Type NSK wheel bearings
HUB 1
d 47 mm
D 82 mm
B 57.5 mm
b 28.75 mm
rx (min.) 3.5 mm
ry (min.) 3.5 mm
Distance between effective load centers 57.5 mm
Cr 95000 N
C0r 138000 N
Mass 1.1 kg (approx.)

NSK EP47KWD01 wheel bearings, KWD type for driven/non-driven wheels.
