SKF 3206 A Bearing

SKF 3206 A ball bearings | 30mm x 62mm x 23.8mm

Also known as : 3206 A, 5206

  • Inside Diameter: 30 mm
  • Outside Diameter: 62 mm
  • Width: 23.8 mm
  • Basic dynamic load rating: 30 kN
  • Basic static load rating: 20.4 kN

Inquire Now


SKF 3206 A Bearing

SKF 3206 A Bearing details

model 3206 A
d 30 mm
D 62 mm
B 23.8 mm
d2 38.7 mm
D2 55.15 mm
a 36 mm
r1,2 min. 1 mm

da min 36 mm
Da max 56 mm
ra max 1 mm

C 30 kN, Basic dynamic load rating
C0 20.4 kN, Basic static load rating
Pu 0.865 kN, Fatigue load limit
Reference speed 10000 r/min
Limiting speed 10000 r/min
kr 0.06, Calculation factor
e 0.8, Calculation factor
X 0.63, Calculation factor
Y0 0.66, Calculation factor
Y1 0.78, Calculation factor
Y2 1.24, Calculation factor
Mass 0.29 kg

SKF 3206 A ball bearings, open type, has cage made of stamped steel. 3206A are dimensionally interchangeable with 5206 bearing.

  • 32: 32 series
  • 06: bore diameter is 30mm
  • A: No filling slots.
  • Contact angle: 32 A series: 30°

please refer to SKF bearing designation.

SKF 3206 A bearing cross reference

SKF 7206 BECBM bearing
30mm x 62mm x 16mm
SKF 7206 BECBP bearing
30mm x 62mm x 16mm
SKF 7306 BECBY bearing
30mm x 72mm x 19mm
SKF 7306 BEGBY bearing
30mm x 72mm x 19mm
SKF 3206 A/C3 bearing
30mm x 62mm x 23.8mm
SKF 3206 ATN9 bearing
30mm x 62mm x 23.8mm
SKF 3206 A-2Z bearing
30mm x 62mm x 23.8mm
SKF 3206 A-2RS1 bearing
30mm x 62mm x 23.8mm

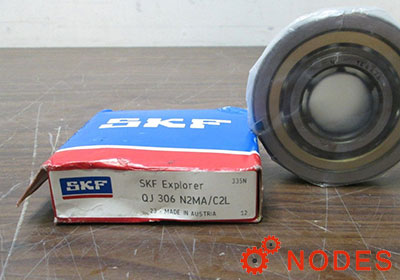

SKF QJ306N2MA bearing
