SKF bearing catalogue: SKF ball bearings, roller bearings, track runners, plain bearings, bearing housing, linear motion.
SKF has a unique understanding of rotating equipment and how machine components and industrial processes are interrelated. As bearings distributor, Nodes bearings supply a wide range of SKF products.
SKF Explorer tapered roller bearings get more uptime all the time Robustness Wear resistance Reliable in operation Long service intervals Contamination resistance Additional options include case hardened bearings and coatings SKF Explorer tapered rol
SKF wrapped bronze bushings are particularly well suited for applications where high levels of contamination make relubrication necessary. The sliding surface of these bushings contains diamond shaped pockets that serve as reservoirs to progressively
SKF sintered bronze bushings are self-lubricating and maintenance-free. These bushings have a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, making them suitable for rotati
SKF PTFE polyamide bushings provide maintenance-free, dry sliding operation and are designed for applications where other polymer bushings might fail prematurely.
SKF POM composite bushings are referred to as prelubricated because their material is designed to operate with marginal lubrication.
SKF PTFE composite bushings are the maintenance-free solution for heavy load/medium speed applications. SKF offers a wide range of both straight and flanged PTFE composite bushings. Advantages of these bushings include: maintenance-free operation ver
With many innovations and refinements over the decades, noted in the timeline below, SKF spherical roller bearings have continuously raised the performance bar. Improvements in steel composition, heat treatment, geometries, surface finishes and lubri
SKF solid bronze bushings are suitable for a wide range of operating conditions and applications. The solid bronze material is particularly well suited for highly demanding applications in tough environments. SKF offers a standard assortment of both
SKF thrust spherical plain bearings have a convex spherical surface on the shaft washer and a corresponding concave spherical surface in the housing washer. They are intended to accommodate primarily axial loads but can also accommodate combined (rad
SKF manufactures maintenance-free rod ends with three different sliding contact surface combinations in different series: Steel/PTFE sintered bronze: SI(L) .. C, SA(L) .. C series Steel/PTFE fabric: SI(L) .. TXE-2LS, SI(L)A .. TXE-2LS, SA(L) .. TXE-2
SKF manufactures rod ends requiring maintenance with a steel/steel or a steel/bronze sliding contact surface combination. Steel/steel rod ends consist of a rod end housing and a steel/steel radial spherical plain bearing from the standard assortment,
SKF manufactures maintenance-free radial spherical plain bearings in a variety of designs and a wide range of sizes. Three sliding contact surface combinations are available: steel/PTFE sintered bronze, designation suffix C steel/PTFE fabric, designa
the sliding contact surfaces of angular contact spherical plain bearings are spherical in shape and inclined at an angle to the bearing axis. Consequently, these bearings are well suited for accommodating combined (radial and axial) loads. Single ang
A characteristic feature of SKF steel/steel radial spherical plain bearings is the outer ring, which is intentionally fractured so that it can be sprung apart to enable the inner ring to be inserted . The SKF bearings are therefore nonseparable and e
SKF support rollers with axial guidance are non-separable units and are especially suitable for applications where lateral (thrust) surfaces are not available. Thrust forces resulting from alignment errors or inclined running are taken up by side was
SKF support rollers without axial guidance are designed for applications where the associated components can be designed to provide axial guidance. The support rollers without inner ring are intended for arrangements where the pin or shaft can be har

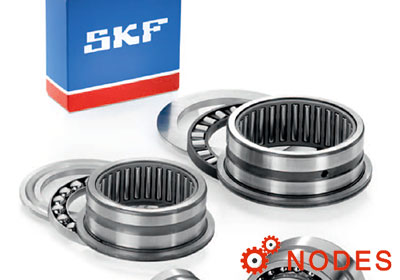

SKF Combined needle roller bearings consist of a radial needle roller bearing combined with a thrust bearing and are consequently able to accommodate both radial and axial loads. Combined needle roller bearings provide the means to produce locating b
SKF Needle roller / cylindrical roller thrust bearings combine a radial needle roller bearing and a cylindrical roller thrust bearing based on the 811 series. SKF supplies these bearings in the following two series: NKXR series, cylindrical roller th
SKF Needle roller / thrust ball bearings combine a radial needle roller bearing and a thrust ball bearing . SKF supplies these bearings in the following two series: NX series, a needle roller bearing with a full complement thrust ball bearing NKX ser
With the exception of bearings designated with a BS2- prefix, the boundary dimensions of sealed spherical roller bearings are in accordance with ISO 15.

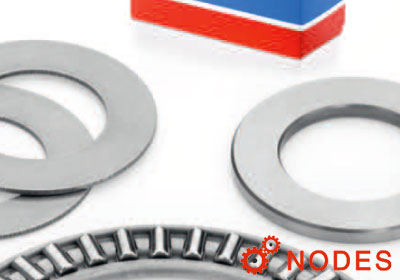

SKF bearing washers are required in cases where adjacent machine components cannot serve as raceways. Available bore sizes for washers in the LS series range from 6 to 160 mm and in the AS series from 4 to 160 mm. SKF washers in the LS and AS series
SKF needle roller thrust bearings in the AXW series consist of a needle roller and cage thrust assembly and a thrust washer with a centring spigot. The spigot facilitates the mounting process of the thrust bearing and provides an accurate radial cent
SKF needle roller and cage thrust assemblies in the AXK series range from a 4 to 160 mm bore. If required, washers in the LS, AS, GS 811 or WS 811 series can be used with these assemblies. A SKF double direction needle roller thrust bearing can be cr
Nodes bearings have SKF thrust needle roller bearings and bearing washers in stock, including AXK, AXW, LS, AS, WS811, GS811 series.

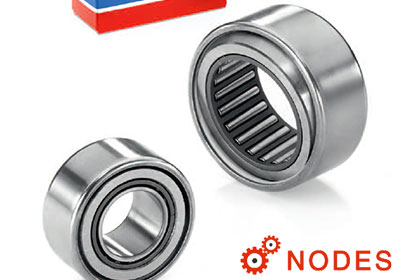

SKF alignment needle roller bearings have an outer ring with a convex sphered outside surface. Two polymer seating rings with a concave sphered inside surface that is encased in a drawn sheet steel sleeve are fitted over the outer ring, enabling the
SKF needle roller bearings with flanges on the outer ring and with an outside diameter up to and including 17 mm (Fw 10 mm), are manufactured with inserted closure rings. These bearings do not have a lubrication hole or an annular groove. Larger bear
SKF needle roller bearings without flanges are completely separable, i.e. the outer ring, the needle roller and cage assembly and the inner ring can all be mounted separately. In many applications, this makes mounting a great deal easier. The needle
Nodes bearings supplies a wide rage of SKF needle roller bearings, inculding NK, NKS, RNA 48, 49, 69, NA 49, NAO, RNAO series.

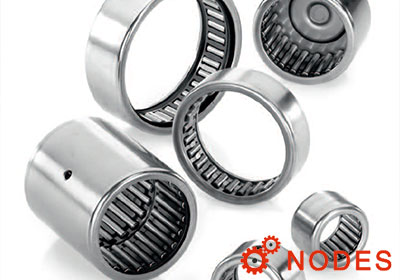

For applications where a sufficiently efficient seal is not available, or cannot be used for space reasons, SKF drawn cup needle roller bearings can also be supplied with integral lip seals. These include: SKF drawn cup needle roller bearings with op
Nodes bearings supplies SKF drawn cup needle roller bearings, including bearing with open ends, with a closed end, and full complement drawn cup needle roller bearing.

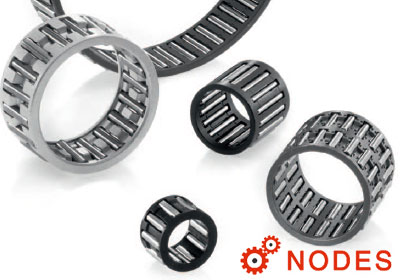

As a SKF bearing distributor , Nodes bearing supplies SKF needle roller and cage assemblies in single row and double row designs. Single row: K..TN, K series Double row: K..ZWTN, K..ZW SKF needle roller and cage assemblies are self-contained, ready-t
As a SKF bearing distritutor, Nodes bearing have SKF spherical roller thrust bearings in stock, including 292, 293, 294 series.

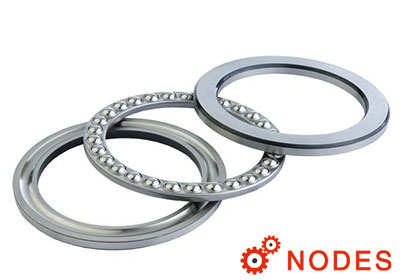

Nodes bearings have SKF thrust bearings in stock, including SKF single, double direction, and thrust ball bearings with sphered housing washers.
Nodes have SKF single row tapered roller bearings in stock, including basic design bearings, application-specific bearings, and bearings with a flanged outer ring.
SKF stainless steel deep groove ball bearings are corrosion resistant when exposed to moisture and several other media, material: stainless X65Cr13
SKF sealed self-aligning ball bearings equipped with contact seals on both sides are available:in the 22 and 23 series.
SKF self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment o
SKF self-aligning ball bearing with an extended inner ring are designed for less demanding applications that use commercial grade shafting. SKF self-aligning ball bearing with an extended inner ring have a special bore tolerance, class JS7, that faci
