SKF 4205 ATN9 deep groove ball bearings
Also known as : 4205 ATN9, 4205-B-TVH
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 18 mm
- Basic dynamic load rating: 19 kN
- Basic static load rating: 14.6 kN
SKF 4205 ATN9 Bearing

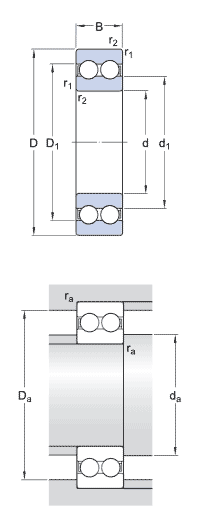

SKF 4205 ATN9 Bearing details
model | 4205 ATN9 |
---|---|
d | 25 mm |
D | 52 mm |
B | 18 mm |
d1 | 34.2 mm |
D1 | 42.8 mm |
r1,2 min. | 1 mm |
da min | 30.6 mm |
Da max | 46.4 mm |
ra max | 1 mm |
C | 19 kN, Basic dynamic load rating |
C0 | 14.6 kN, Basic static load rating |
Pu | 0.62 kN, Fatigue load limit |
Reference speed | 20000 r/min |
Limiting speed | 11000 r/min |
kr | 0.05, Calculation factor |
f0 | 14.3, Calculation factor |
Mass | 0.17 kg |
As SKF bearing distributor, Nodes bearings have SKF 4205 ATN9 ball bearings in stock, SKF deep groove ball bearing, Double-Row.
