SKF 52207 thrust bearings
Also known as : 52207
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 34 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 73.5 kN
SKF 52207 Bearing

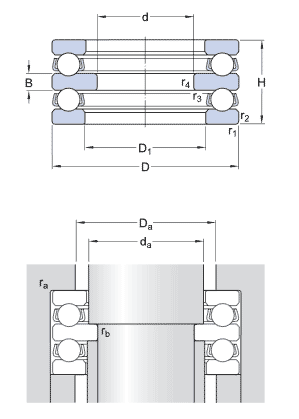

SKF 52207 Bearing details
| model | 52207 |
|---|---|
| d | 30 mm |
| D | 62 mm |
| H | 34 mm |
| D1 ≈ | 37 mm |
| B | 8 mm |
| r1,2 min. | 1 mm |
| r3,4 min. | 0.3 mm |
| da | 35 mm |
| Da max. | 46 mm |
| ra max. | 1 mm |
| rb max. | 0.3 mm |
| Calculation data | |
| C | 35.1 kN, Basic dynamic load rating |
| C0 | 73.5 kN, Basic static load rating |
| Pu | 2.7 kN, Fatigue load limit |
| Reference speed | 3000 r/min |
| Limiting speed | 4300 r/min |
| A | 0.028, Minimum load factor |
| Mass | 0.41 kg |
As SKF bearing distributor, Nodes bearings have SKF 52207 thrust bearings in stock, SKF thrust bearings, double direction.
