SKF 53207+U207 bearings
Also known as : 53207+U207, 53207XU
- Inside Diameter: 35 mm
- Outside Diameter: 62 mm
- Width: 19.9 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 73.5 kN
SKF 53207+U207 Bearing

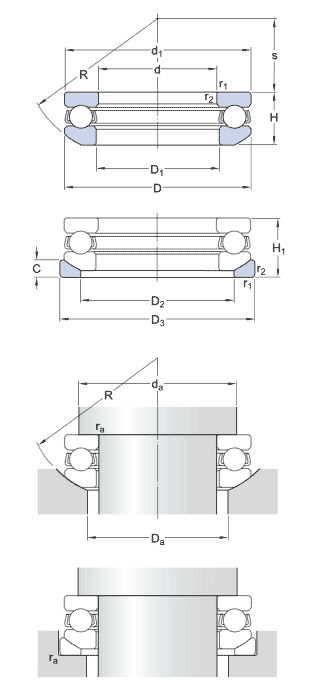

SKF 53207+U207 Bearing details
| model | 53207+U207 |
|---|---|
| d | 35 mm |
| D | 62 mm |
| H | 19.9 mm |
| H1 | 22 mm |
| d1 ≈ | 62 mm |
| D1 ≈ | 37 mm |
| D2 | 48 mm |
| D3 | 65 mm |
| C | 7 mm |
| R | 50 mm |
| s | 24 mm |
| r1,2 min. | 1 mm |
| da min. | 51 mm |
| Da max. | 48 mm |
| ra max. | 1 mm |
| Calculation data | |
| C | 35.1 kN, Basic dynamic load rating |
| C0 | 73.5 kN, Basic static load rating |
| Pu | 2.7 kN, Fatigue load limit |
| Reference speed | 4000 r/min |
| Limiting speed | 5600 r/min |
| A | 0.028, Minimum load factor |
| Mass | 0.28 kg |
As SKF bearing distributor, Nodes bearings have SKF 53207+U207 thrust bearings in stock, SKF thrust bearings.
SKF 53207+U207 bearing cross reference
SKF 51307 bearing
35mm x 68mm x 24mm
NSK 53207 bearing
35mm x 62mm x 19.9mm
NSK 53207U bearing
35mm x 62mm x 22mm
FAG 53207 bearing
35mm x 62mm x 19.9mm
