SKF 6310-2RS1 Bearing

SKF 6310-2RS1 single row deep groove ball bearings

Also known as : 6310-2RS1, 6310DDU

  • Inside Diameter: 50 mm
  • Outside Diameter: 110 mm
  • Width: 27 mm
  • Basic dynamic load rating: 65 kN
  • Basic static load rating: 38 kN

Inquire Now


SKF 6310-2RS1 Bearing

SKF 6310-2RS1 Bearing details

model 6310-2RS1
d 50 mm
D 110 mm
B 27 mm
d1 68.76 mm
D2 95.2 mm
r1,2 min. 2 mm

da min 61 mm
da max 68.7 mm
Da max 99 mm
ra max 2 mm

C 65 kN, Basic dynamic load rating
C0 38 kN, Basic static load rating
Pu 1.6 kN, Fatigue load limit
Limiting speed 4300 r/min
kr 0.03, Calculation factor
f0 13, Calculation factor
Mass 1.121 kg

SKF 6310-2RS1 ball bearings, SKF Explorer, deep groove ball bearing, Single-Row, Contact seal, NBR, on both sides.

SKF 6310-2RS1 bearing cross reference

NSK 6310ZZ bearing
50mm x 110mm x 27mm
NSK 6310DDU bearing
50mm x 110mm x 27mm
NSK 6310DDUC3 bearing
50mm x 110mm x 27mm
SKF 6010-2Z bearing
50mm x 80mm x 16mm
SKF 6210-2Z bearing
50mm x 90mm x 20mm
SKF 6310-2Z bearing
50mm x 110mm x 27mm
SKF 6310-2Z/C3 bearing
50mm x 110mm x 27mm

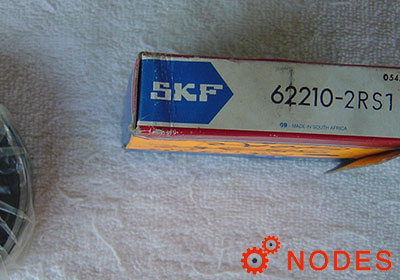

SKF 62210-2RS1 bearing
50mm x 90mm x 23mm
NSK 6310 bearing
50mm x 110mm x 27mm
NSK 6310VV bearing
50mm x 110mm x 27mm
SKF 6010 bearing
50mm x 80mm x 16mm
FAG 6310 bearing
50mm x 110mm x 27mm
