SKF QJ330N2MA ball bearings
Also known as : QJ330N2MA, QJ330-NA-MPA
- Inside Diameter: 150 mm
- Outside Diameter: 320 mm
- Width: 65 mm
- Basic dynamic load rating: 530 kN
- Basic static load rating: 765 kN
SKF QJ330N2MA Bearing

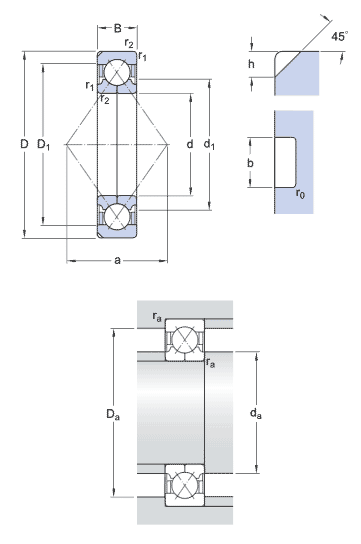

SKF QJ330N2MA Bearing details
| model | QJ330N2MA |
|---|---|
| d | 150 mm |
| D | 320 mm |
| B | 65 mm |
| d1 | 211 mm |
| D1 | 259 mm |
| a | 165 mm |
| h | 12.7 mm |
| b | 10.5 mm |
| r0 | 2 mm |
| r1,2 min. | 4 mm |
| da min | 167 mm |
| Da max | 303 mm |
| ra max | 3 mm |
| C | 530 kN, Basic dynamic load rating |
| C0 | 765 kN, Basic static load rating |
| Pu | 21.2 kN, Fatigue load limit |
| Limiting speed | 3600 r/min |
| A | 1646.26, Calculation factor |
| e | 0.95, Calculation factor |
| X | 0.6, Calculation factor |
| Y0 | 0.58, Calculation factor |
| Y1 | 0.66, Calculation factor |
| Y2 | 1.07, Calculation factor |
| Mass | 29 kg |
As SKF bearing distributor, Nodes bearings have SKF QJ330N2MA ball bearings in stock, SKF four-point contact ball bearings.
SKF QJ330N2MA bearing cross reference
SKF 7330 BCBM bearing
150mm x 320mm x 65mm
NSK QJ330 bearing
150mm x 320mm x 65mm
