SKF JM205149/110 Bearing

SKF JM205149/110 tapered roller bearings

Also known as : JM205149/110

  • Inside Diameter: 50 mm
  • Outside Diameter: 90 mm
  • Width: 28 mm
  • Basic dynamic load rating: 130 kN
  • Basic static load rating: 140 kN

Inquire Now

SKF JM205149/110 Bearing

SKF JM205149/110 Bearing details

model JM205149/110
Dimension series M 205100
d 50 mm
D 90 mm
T 28 mm
d1 68.8 mm
B 28 mm
C 23 mm
r1,2 min. 3 mm
r3,4 min. 2.5 mm
a 20.024 mm
da max. 58 mm
db min. 62 mm
Da min. 78 mm
Da max. 80 mm
Db min. 85 mm
Ca min. 5 mm
Cb min. 5 mm
ra max. 3 mm
rb max. 2.5 mm
Calculation data
C 130 kN, Basic dynamic load rating
C0 140 kN, Basic static load rating
Pu 16 kN, Fatigue load limit
Reference speed 6000 r/min
Limiting speed 7500 r/min
e 0.33, Calculation factor
Y 1.8, Calculation factor
Y0 1, Calculation factor
Mass 0.75 kg

As SKF bearing distributor, Nodes bearings have SKF JM205149/110 roller bearings, SKF Explorer, Tapered roller bearings, Dimension series: M 205100.

related articles

SKF JM205149/110 bearing cross reference

SKF 30310 bearing
50mm x 110mm x 29.25mm

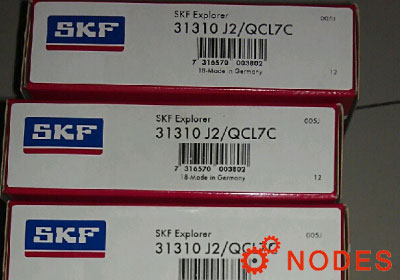

SKF 31310 bearing
50mm x 110mm x 29.25mm

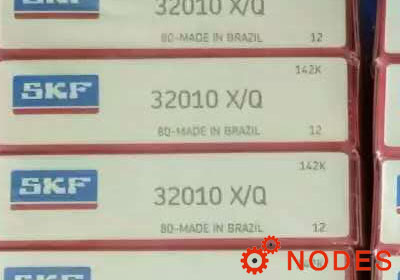

SKF 32010X bearing
50mm x 80mm x 20mm

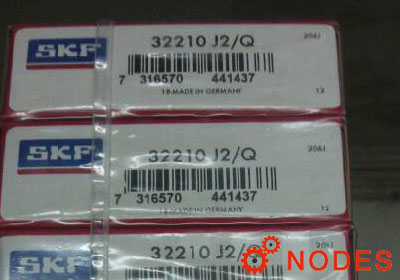

SKF 32210 bearing
