SKF N 218 ECP Bearing

SKF N 218 ECP cylindrical roller bearings

Also known as : N 218 ECP, N218B-TVP

  • Inside Diameter: 90 mm
  • Outside Diameter: 160 mm
  • Width: 30 mm
  • Basic dynamic load rating: 208 kN
  • Basic static load rating: 220 kN

Inquire Now

SKF N 218 ECP Bearing

SKF N 218 ECP Bearing details

model N 218 ECP
d 90 mm
D 160 mm
B 30 mm
d1 114 mm
E 145 mm
r1,2 min. 2 mm
r3,4 min. 2 mm
smax. 1.8 mm

da min 101 mm
da max 142 mm
Da min 148 mm
Da max 149 mm
ra max 2 mm
rb max 2 mm

C 208 kN, Basic dynamic load rating
C0 220 kN, Basic static load rating
Pu 27 kN, Fatigue load limit
Reference speed 4500 r/min
Limiting speed 5000 r/min
Kr 0.12, Calculation factor
e 0.2, Limiting value
Y 0.6, Axial load factor
Mass 2.32 kg

Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF N 218 ECP roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.

related articles

Related numbers

FAG N218-E-XL-TVP2 bearing
90mm x 160mm x 30mm

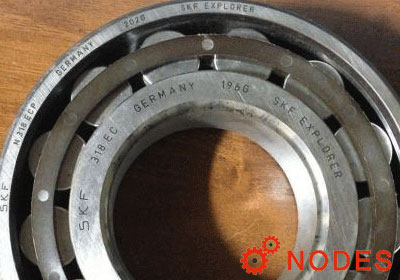

SKF N 318 ECP bearing
90mm x 190mm x 43mm

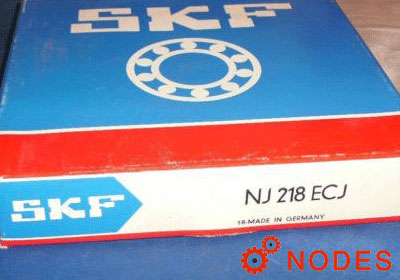

SKF NJ218ECJ bearing
90mm x 160mm x 30mm

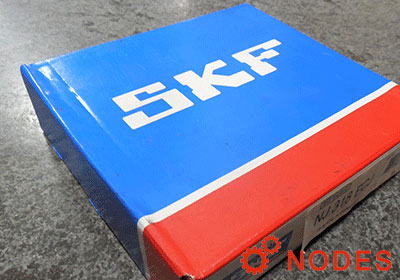

SKF NJ318ECJ bearing
90mm x 190mm x 43mm

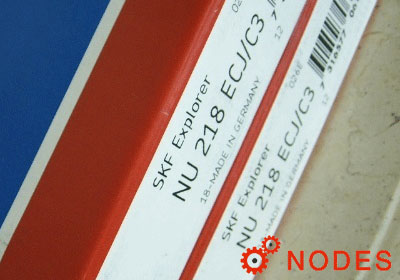

SKF NU218ECJ/C3 bearing
90mm x 160mm x 30mm

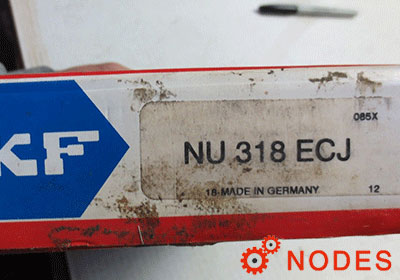

SKF NU318ECJ bearing
90mm x 190mm x 43mm

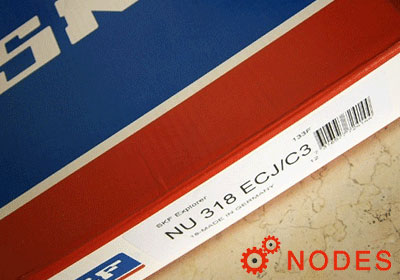

SKF NU318ECJ/C3 bearing
90mm x 190mm x 43mm

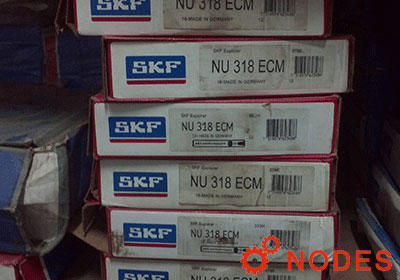

SKF NU318ECM bearing
90mm x 190mm x 43mm

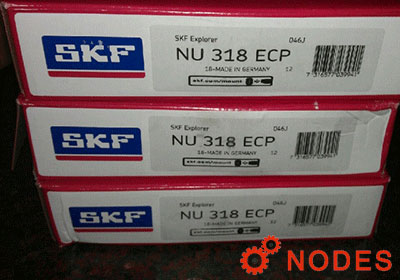

SKF NU318ECP bearing
90mm x 190mm x 43mm

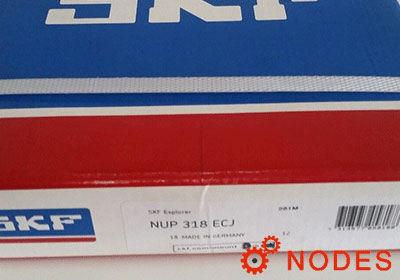

SKF NUP318ECJ bearing
90mm x 190mm x 43mm

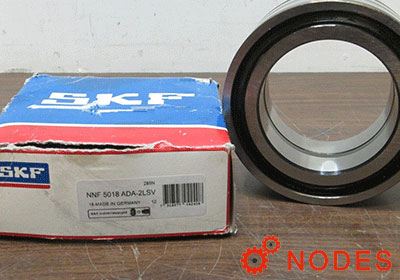

SKF NNF5018ADA-2LSV bearing
