SKF HK1816 needle bearings
Also known as : HK1816
- Inside Diameter: 18 mm
- Outside Diameter: 24 mm
- Width: 16 mm
- Basic dynamic load rating: 11.2 kN
- Basic static load rating: 17.6 kN
SKF HK1816 Bearing
SKF HK1816 Bearing details
| number | HK1816 | |
|---|---|---|
| Fw | 18 mm | |
| D | 24 mm | |
| C | 16 mm | |
| r min. | 0.8 mm | |
| Inner ring IR series | IR 15x18x16.5 | |
| Inner ring LR series | LR 15x18x16.5 | |
| Radial shaft seal with a low cross-sectional height, single lip | G 18x24x3 | |
| Radial shaft seal with a low cross-sectional height, double lip | SD 18x24x3 | |
| Calculation data | ||
| C | 11.2 kN, Basic dynamic load rating | |
| C0 | 17.6 kN, Basic static load rating | |
| Pu | 2.04 kN, Fatigue load limit | |
| Reference speed | 13000 r/min | |
| Limiting speed | 15000 r/min | |
| Mass | 0.018 kg | |
As SKF bearing distributor, Nodes bearings have SKF HK1816 needle roller bearings in stock, SKF Drawn cup needle roller bearings.
SKF HK1816 bearing cross reference

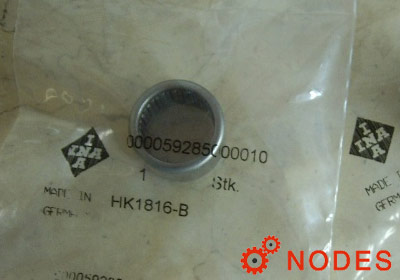

INA HK1816 bearing
18mm x 24mm x 16mm

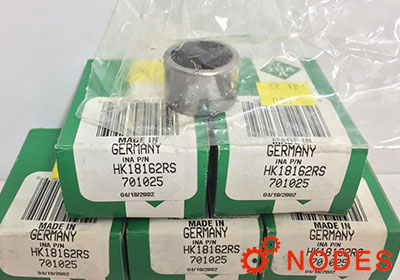

INA HK1816-2RS bearing
18mm x 24mm x 16mm
