SKF NKIA5904 Bearing

SKF NKIA5904 combined needle bearings | 20x37x23mm

Also known as : NKIA5904

  • Inside Diameter: 20 mm
  • Outside Diameter: 37 mm
  • Width: 23 mm
  • Basic dynamic load rating: 21.6 kN
  • Basic static load rating: 28 kN

Inquire Now

SKF NKIA5904 Bearing

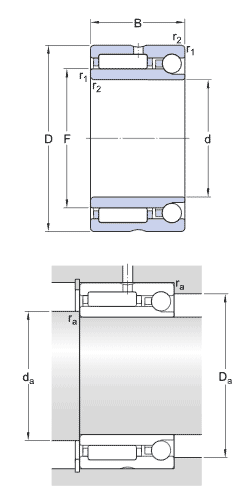

SKF NKIA5904 Bearing details

number NKIA5904
Type Combined needle roller bearings
d 20 mm
D 37 mm
B 23 mm
F 25 mm
r1,2 min. 0.3 mm
da min. 22 mm
Da max. 35 mm
ra max. 0.3 mm
Calculation data
Basic dynamic load rating, radial direction C 21.6 kN
Basic static load rating, radial direction C0 28 kN
Basic dynamic load rating, axial direction C 3.79 kN
Basic static load rating, axial direction C0 4.21 kN
Fatigue load limit, radial direction Pu 3.35 kN
Fatigue load limit, axial direction Pu 0.176 kN
Reference speed   15000 r/min
Limiting speed   17000 r/min

As SKF bearing distributor, Nodes bearings have SKF NKIA5904 Needle roller / angular contact ball bearings in stock.
