SKF RNA6913 needle bearings
Also known as : RNA6913
- Inside Diameter: 72 mm
- Outside Diameter: 90 mm
- Width: 45 mm
- Basic dynamic load rating: 95.2 kN
- Basic static load rating: 212 kN
SKF RNA6913 Bearing

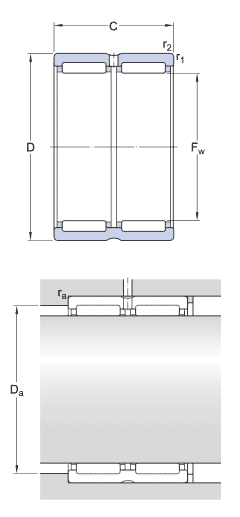

SKF RNA6913 Bearing details
| number | RNA6913 | |
|---|---|---|
| Fw | 72 mm | |
| D | 90 mm | |
| C | 45 mm | |
| r1,2 min. | 1 mm | |
| Da max. | 85 mm | |
| ra max. | 1 mm | |
| Radial shaft seal | 72x90x10 HMS5 RG | |
| Calculation data | ||
| C | 95.2 kN, Basic dynamic load rating | |
| C0 | 212 kN, Basic static load rating | |
| Pu | 26 kN, Fatigue load limit | |
| Reference speed | 5600 r/min | |
| Limiting speed | 6300 r/min | |
| Mass | 0.58 kg | |
As SKF bearing distributor, Nodes bearings have SKF RNA6913 needle roller bearings in stock, SKF Needle roller bearings, with machined rings, without an inner ring.
SKF RNA6913 bearing cross reference
IKO RNA6913 bearing
D:72mm * 90mm * 45mm
IKO RNA6913UU bearing
D:72mm * 90mm * 45mm
INA RNA6913-ZW-XL bearing
72mm x 90mm x 45mm
