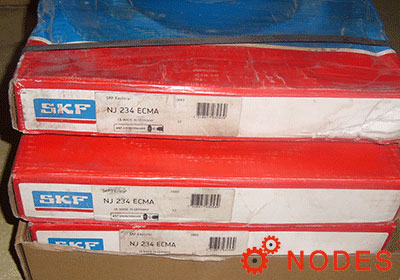

SKF NJ234ECM cylindrical roller bearings
Also known as : NJ234ECM, NJ234B-MP
- Inside Diameter: 170 mm
- Outside Diameter: 310 mm
- Width: 52 mm
- Basic dynamic load rating: 695 kN
- Basic static load rating: 815 kN
SKF NJ234ECM Bearing
SKF NJ234ECM Bearing details
| model | NJ234ECM |
|---|---|
| d | 170 mm |
| D | 310 mm |
| B | 52 mm |
| d1 | 220 mm |
| D1 | 267.4 mm |
| F | 207 mm |
| r1,2 min. | 4 mm |
| r3,4 min. | 4 mm |
| smax. | 2.9 mm |
| da min | 188 mm |
| da max | 203 mm |
| db min | 224 mm |
| Da max | 292.4 mm |
| ra max | 3 mm |
| C | 695 kN, Basic dynamic load rating |
| C0 | 815 kN, Basic static load rating |
| Pu | 85 kN, Fatigue load limit |
| Reference speed | 2200 r/min |
| Limiting speed | 2400 r/min |
| Kr | 0.15, Calculation factor |
| e | 0.2, Limiting value |
| Y | 0.6, Axial load factor |
| Mass | 18.7 kg |
Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NJ234ECM roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.
SKF NJ234ECM bearing cross reference
FAG NJ234-E-XL-M1 bearing
170mm x 310mm x 52mm
NTN NJ234E bearing
170mm x 310mm x 52mm
SKF NU 234 ECM/C3 bearing
170 x 310 x 52 mm

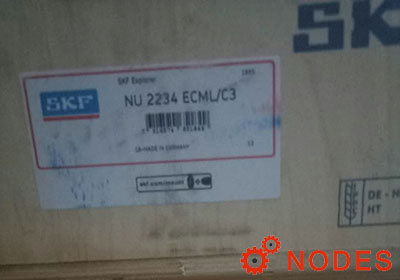

SKF NU 2234 ECML bearing
170.0x310.0x86.0mm
