SKF NU319ECP Bearing

SKF NU319ECP cylindrical roller bearings

Also known as : NU319ECP, NU319-TVP

  • Inside Diameter: 95 mm
  • Outside Diameter: 200 mm
  • Width: 45 mm
  • Basic dynamic load rating: 390 kN
  • Basic static load rating: 390 kN

Inquire Now


SKF NU319ECP Bearing

SKF NU319ECP Bearing details

model NU319ECP
d 95 mm
D 200 mm
B 45 mm
D1 168.3 mm
F 121.5 mm
r1,2 min. 3 mm
r3,4 min. 3 mm
smax. 2.9 mm

da min 110 mm
da max 118 mm
db min 125 mm
Da max 185 mm
ra max 2.5 mm
rb max 2.5 mm

C 390 kN, Basic dynamic load rating
C0 390 kN, Basic static load rating
Pu 46.5 kN, Fatigue load limit
Reference speed 3600 r/min
Limiting speed 4300 r/min
Kr 0.15, Calculation factor
e 0.2, Limiting value
Y 0.6, Axial load factor
Angle ring HJ 319 EC
Mass 6.18 kg

Nodes bearings, SKF cylindrical roller bearings, have SKF NU319ECP roller bearings in stock, SKF Explorer, Cylindrical roller bearings, single row.

SKF NU319ECP bearing cross reference

FAG NU319-E-XL-TVP2 bearing
95mm x 200mm x 45mm
SKF N 319 ECM bearing
95mm x 200mm x 45mm
SKF N 319 ECP bearing
95mm x 200mm x 45mm
SKF NJ219ECP bearing
95mm x 170mm x 32mm
SKF NJ2319ECJ bearing
95mm x 200mm x 67mm
SKF NU319ECJ bearing
95mm x 200mm x 45mm
SKF NUP219ECP bearing
95mm x 170mm x 32mm
TIMKEN NU319EMA bearing
95mm x 200mm x 45mm

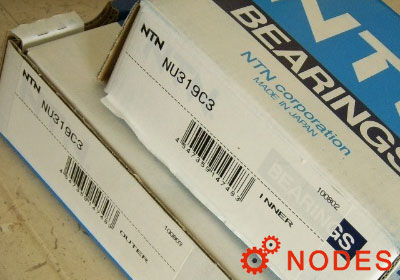

NTN NU319 bearing
95mm x 200mm x 45mm
SKF NU 319 ECM bearing
95.0x200.0x45.0mm
