SKF NUP2307ECP Bearing

SKF NUP2307ECP cylindrical roller bearings

Also known as : NUP2307ECP, NUP2307B-TVP

  • Inside Diameter: 35 mm
  • Outside Diameter: 80 mm
  • Width: 31 mm
  • Basic dynamic load rating: 106 kN
  • Basic static load rating: 98 kN

Inquire Now

SKF NUP2307ECP Bearing

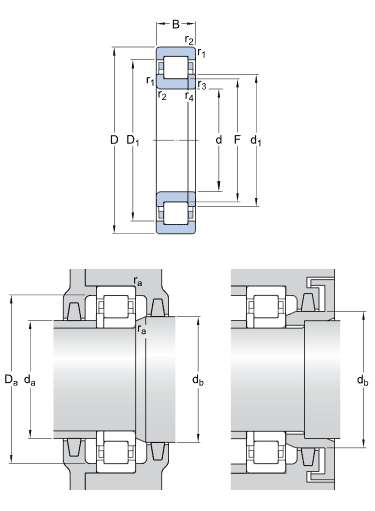

SKF NUP2307ECP Bearing details

model NUP2307ECP
d 35 mm
D 80 mm
B 31 mm
d1 51 mm
D1 65.8 mm
F 46.2 mm
r1,2 min. 1.5 mm
r3,4 min. 1.1 mm

da min 43 mm
db min 53 mm
Da max 72.2 mm
ra max 1.5 mm

C 106 kN, Basic dynamic load rating
C0 98 kN, Basic static load rating
Pu 12.7 kN, Fatigue load limit
Reference speed 9500 r/min
Limiting speed 11000 r/min
Kr 0.25, Calculation factor
e 0.3, Limiting value
Y 0.4, Axial load factor
Mass 0.76 kg

Nodes bearings, SKF single row cylindrical roller bearings wholesaler, have SKF NUP2307ECP roller bearings in stock, SKF Explorer, SKF Cylindrical roller bearings, single row.
NUP2307ECP

  • NUP: have two integral flanges on the outer ring and one integral flange and one non-integral flange, i.e. a loose flange ring, on the inner ring
  • 23: series code
  • 07: d=35mm
  • EC: Optimized internal design incorporating more and/or larger rollers and with modified roller end / flange contact
  • P: Glass fibre reinforced PA66 cage, roller centred
