TIMKEN 6013-2RS Bearing

TIMKEN 6013-2RS Deep Groove Ball Bearings | 65x100x18mm

Also known as : 6013-2RS

  • Inside Diameter: 65 mm
  • Outside Diameter: 100 mm
  • Width: 18 mm
  • Basic dynamic load rating: 30.5 kN
  • Basic static load rating: 23.5 kN

Inquire Now


TIMKEN 6013-2RS Bearing

TIMKEN 6013-2RS Bearing details

Bearing Number6013-2RS
BrandTIMKEN
TypeDeep groove ball bearings
Clearance C0 (Normal)
Bore Size d 65.000 mm
Features Contact Seals
Weight 0.430 Kg
Outside Diameter D 100.000 mm
Outside Ring Width B 18.000 mm
Radius Rs min 1.100 mm
Cr - Dynamic Load Rating 30.5 kN
C0r - Static Load Rating 23.5 kN
Grease Reference Speed 6700 rpm
Oil Reference Speed 9700 rpm

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 6013-2RS bearings in stock. Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously.

TIMKEN 6013-2RS bearing cross reference

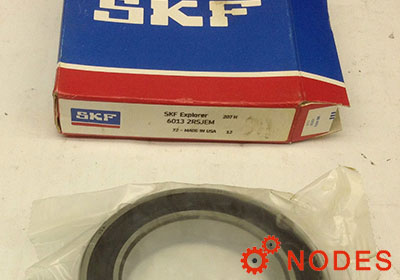

SKF 6013-2RS1 bearing
65mm x 100mm x 18mm

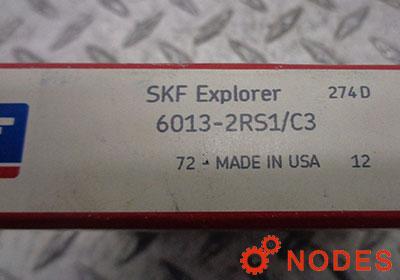

SKF 6013-2RS1/C3 bearing
65mm x 100mm x 18mm
NSK 6013 bearing
65mm x 100mm x 18mm
NSK 6013ZZ bearing
65mm x 100mm x 18mm
NSK 6013DDU bearing
65mm x 100mm x 18mm
NSK 6013VV bearing
65mm x 100mm x 18mm
FAG 6013-C3 bearing
65mm x 100mm x 18mm
FAG 6013-M bearing
65mm x 100mm x 18mm
FAG 6013-M-J20AA bearing
65mm x 100mm x 18mm
FAG 6013-2RSR bearing
65mm x 100mm x 18mm
TIMKEN 6213-2RS bearing
65mm x 120mm x 23mm
TIMKEN 6313-2RS bearing
65mm x 140mm x 33mm
