TIMKEN 61906-C3 Bearing

TIMKEN 61906-C3 Deep Groove Ball Bearings | 30x47x9mm

Also known as : 61906-C3

  • Inside Diameter: 30 mm
  • Outside Diameter: 47 mm
  • Width: 9 mm
  • Basic dynamic load rating: 7.2 kN
  • Basic static load rating: 5 kN

Inquire Now


TIMKEN 61906-C3 Bearing

TIMKEN 61906-C3 Bearing details

Bearing Number 61906-C3
Brand TIMKEN
Type Deep groove ball bearings
Clearance C3
Bore Size d 30.000 mm
Features Open
Weight 0.044 Kg
Outside Diameter D 47.000 mm
Outside Ring Width B 9.000 mm
Radius Rs min 0.300 mm
Cr - Dynamic Load Rating 7.2 kN
C0r - Static Load Rating 5 kN
Grease Limiting Speed 14000 rpm
Oil Limiting Speed 17000 rpm

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 61906-C3 bearings in stock. Timken 61000 thin section series have bore sizes that range from 10 to 65 mm and outside diameter sizes that range from 18 to 90mm.

TIMKEN 61906-C3 bearing cross reference

SKF 61906-2RS1 bearing
30mm x 47mm x 9mm
NSK 6906 bearing
30mm x 47mm x 9mm
NSK 6906ZZ bearing
30mm x 47mm x 9mm
NSK 6906DDU bearing
30mm x 47mm x 9mm
NSK 6906VV bearing
30mm x 47mm x 9mm
FAG 61906 bearing
30mm x 47mm x 9mm
FAG 61906-2RSR bearing
30mm x 47mm x 9mm
TIMKEN 6006-2RS bearing
30mm x 55mm x 13mm
TIMKEN 6206-2RS bearing
30mm x 62mm x 16mm

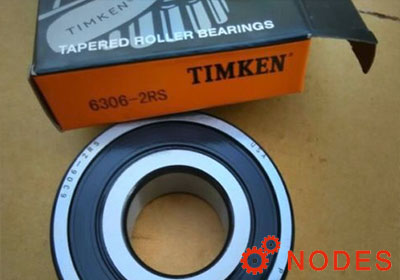

TIMKEN 6306-2RS bearing
30mm x 72mm x 19mm
TIMKEN 6006-2RS-NR bearing
30mm x 55mm x 13mm
TIMKEN 6206-2RS-NR bearing
30mm x 62mm x 16mm
