TIMKEN NJ232EMA Bearing

TIMKEN NJ232EMA Cylindrical Roller Bearings | 160x290x48mm

Also known as : NJ232EMA

  • Inside Diameter: 160 mm
  • Outside Diameter: 290 mm
  • Width: 48 mm
  • Basic dynamic load rating: 572 kN
  • Basic static load rating: 695 kN

Inquire Now

TIMKEN NJ232EMA Bearing

TIMKEN NJ232EMA Bearing details

Bearing Number NJ232EMA
Brand TIMKEN
Type Cylindrical roller bearings
Design Units METRIC
Bearing Weight 14.70 Kg
32.400 lb

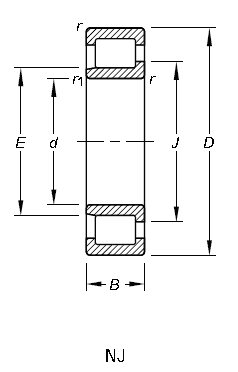

Type NJ
Tapered Bore N
d - Bore 160 mm
6.2992 in
D - Outer Diameter 290.000 mm
11.4173 in
C - Inner Ring Width 48.000 mm
1.8898 in
B - Outer Ring Width 48.000 mm
1.8898 in
C0 - Static Radial Rating 695000 N
156000 lbf
C - Dynamic Radial Rating1 572000 N
129000 lbf
Reference Thermal Speed Rating (Grease) 1900
Reference Thermal Speed Rating (Oil)2 2200
Cg - Geometry Factor3 0.1135
R - Inner Ring "To Clear" Radius4 2.500 mm
0.100 in
r - Outer Ring "To Clear" Radius5 2.500 mm
0.100 in
da - Inner Ring Backing Diameter 190.000 mm
7.500 in
Da - Outer Ring Backing Diameter 0.000 mm
0.000 in

1 Based on 1 X 106 L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.

As TIMKEN bearing distributor, Nodes bearings have TIMKEN NJ232EMA bearings in stock.

TIMKEN NJ232EMA bearing cross reference

FAG NJ232-E-XL-M1 bearing
160mm x 290mm x 48mm
TIMKEN NU1032MA bearing
160mm x 240mm x 38mm
TIMKEN NJ2232EMA bearing
160mm x 290mm x 80mm
TIMKEN NUP232EMA bearing
160mm x 290mm x 48mm
TIMKEN NU2232EMA bearing
160mm x 290mm x 80mm
TIMKEN NU232EMA bearing
160mm x 290mm x 48mm
TIMKEN 160RU91R3 bearing
160mm x 250mm x 73.025mm
TIMKEN 160RU91R4 bearing
160mm x 250mm x 73.025mm
