TIMKEN NU2228EMA Bearing

TIMKEN NU2228EMA Cylindrical Roller Bearings | 140x250x68mm

Also known as : NU2228EMA

  • Inside Diameter: 140 mm
  • Outside Diameter: 250 mm
  • Width: 68 mm
  • Basic dynamic load rating: 650 kN
  • Basic static load rating: 850 kN

Inquire Now

TIMKEN NU2228EMA Bearing

TIMKEN NU2228EMA Bearing details

Bearing Number NU2228EMA
Brand TIMKEN
Type Cylindrical roller bearings
Design Units METRIC
Bearing Weight 14.8 Kg
32.6 lb
Type NU
Tapered Bore N
d - Bore 140 mm
5.5118 in
D - Outer Diameter 250 mm
9.8425 in
C - Inner Ring Width 68.000 mm
2.6772 in
B - Outer Ring Width 68.000 mm
2.6772 in
C0 - Static Radial Rating 850000 N
191000 lbf
C - Dynamic Radial Rating1 650000 N
146000 lbf
Reference Thermal Speed Rating (Grease) 1800
Reference Thermal Speed Rating (Oil)2 2100
Cg - Geometry Factor3 0.1366
R - Inner Ring "To Clear" Radius4 2.500 mm
0.100 in
r - Outer Ring "To Clear" Radius5 2.500 mm
0.100 in
da - Inner Ring Backing Diameter 160.000 mm
6.300 in
Da - Outer Ring Backing Diameter 0.000 mm
0.000 in

1 Based on 1 X 106 L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.

As TIMKEN bearing distributor, Nodes bearings have TIMKEN NU2228EMA bearings in stock.

TIMKEN NU2228EMA bearing cross reference

NSK NU2228 bearing
140mm x 250mm x 68mm
FAG NU2228-E-XL-M1 bearing
140mm x 250mm x 68mm

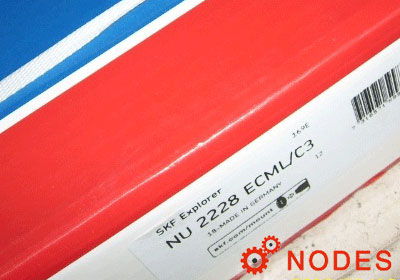

SKF NU2228ECML/C3 bearing
140mm x 250mm x 68mm
TIMKEN NJ2228EMA bearing
140mm x 250mm x 68mm
TIMKEN NJ228EMA bearing
140mm x 250mm x 42mm
TIMKEN NU228EMA bearing
140mm x 250mm x 42mm
TIMKEN NJ2328EMA bearing
140mm x 300mm x 102mm
TIMKEN NJ328EMA bearing
140mm x 300mm x 62mm
TIMKEN NU2328EMA bearing
140mm x 300mm x 102mm
TIMKEN NU328EMA bearing
140mm x 300mm x 62mm
TIMKEN 140RU51R3 bearing
140mm x 220mm x 36mm
TIMKEN 140RU93R3 bearing
140mm x 300mm x 114.300mm
