TIMKEN NU230EMA Bearing

TIMKEN NU230EMA Cylindrical Roller Bearings | 150x270x45mm

Also known as : NU230EMA

  • Inside Diameter: 150 mm
  • Outside Diameter: 270 mm
  • Width: 45 mm
  • Basic dynamic load rating: 506 kN
  • Basic static load rating: 607 kN

Inquire Now

TIMKEN NU230EMA Bearing

TIMKEN NU230EMA Bearing details

Bearing Number NU230EMA
Brand TIMKEN
Type Cylindrical roller bearings
Design Units METRIC
Bearing Weight 11.6 Kg
25.60 lb
Type NU
Tapered Bore N
d - Bore 150 mm
5.9055 in
D - Outer Diameter 270.000 mm
10.6299 in
C - Inner Ring Width 45.000 mm
1.7717 in
B - Outer Ring Width 45.000 mm
1.7717 in
C0 - Static Radial Rating 607000 N
136000 lbf
C - Dynamic Radial Rating1 506000 N
114000 lbf
Reference Thermal Speed Rating (Grease) 2000
Reference Thermal Speed Rating (Oil)2 2400
Cg - Geometry Factor3 0.1076
R - Inner Ring "To Clear" Radius4 2.500 mm
0.100 in
r - Outer Ring "To Clear" Radius5 2.500 mm
0.100 in
da - Inner Ring Backing Diameter 177.000 mm
7.000 in
Da - Outer Ring Backing Diameter 0.000 mm
0.000 in

1 Based on 1 X 106 L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.

As TIMKEN bearing distributor, Nodes bearings have TIMKEN NU230EMA bearings in stock.

TIMKEN NU230EMA bearing cross reference

NSK NU230 bearing
150mm x 270mm x 45mm

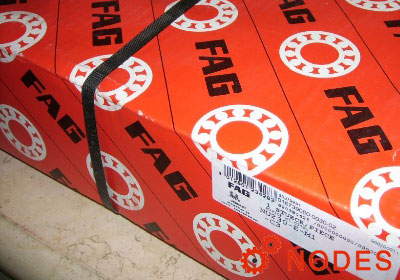

FAG NU230-E-XL-M1-C3 bearing
150mm x 270mm x 45mm

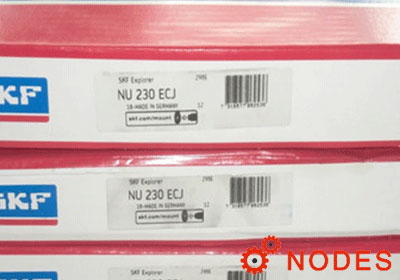

SKF NU230ECJ bearing
150mm x 270mm x 45mm

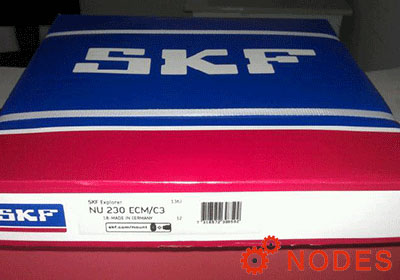

SKF NU230ECM bearing
150mm x 270mm x 45mm
TIMKEN NU1030MA bearing
150mm x 225mm x 35mm
TIMKEN NJ230EMA bearing
150mm x 270mm x 45mm
TIMKEN NUP230EMA bearing
150mm x 270mm x 45mm
TIMKEN 150RU51OO771R3 bearing
150mm x 235mm x 38mm
TIMKEN 150RU91OO771R3 bearing
150mm x 235mm x 66.700mm
TIMKEN 150RU03AA781R3 bearing
150mm x 320mm x 65mm
