INA NKX50-XL Bearing

INA NKX50-XL combined needle bearings | 50x62x35mm

Also known as : NKX50-XL

  • Inside Diameter: 50 mm
  • Outside Diameter: 62 mm
  • Width: 35 mm
  • Basic dynamic load rating: 29 kN
  • Basic static load rating: 75 kN

Inquire Now


INA NKX50-XL Bearing

INA NKX50-XL Bearing details

Number NKX50-XL
Type Needle roller bearings
Needle roller/axial ball bearings

Fw 50 mm
D 62 mm
C 35 mm  Tolerance: 0/-0,25
C1 14 mm  Tolerance: 0/-0,2
C2 10 mm
D1 max 70,2 mm
da 65,5 mm
dw 50 mm  Tolerance: E8
ra max 0,6 mm
rmin 0,6 mm
m 280 g  Mass
Cr 43000 N  Basic dynamic load rating, radial
C0r 74000 N  Basic static load rating, radial
Ca 29000 N  Basic dynamic load rating, axial
C0a 75000 N  Basic static load rating, axial
Cur 12700 N  Fatigue limit load, radial
Cua 3650 N  Fatigue limit load, axial
nG 3300 1/min  Limiting speed
  IR45X50X25-XL  Suitable inner ring

As INA bearing distributor, Nodes bearings have INA NKX50-XL Needle roller/axial ball bearings in stock. NKX50-XL is axial component, single direction, to DIN 5429, without end cap, for oil lubrication.

INA NKX50-XL bearing cross reference

INA HK5020 bearing
50mm x 58mm x 20mm
INA HK5025 bearing
50mm x 58mm x 25mm
INA HK5024-2RS bearing
50mm x 58mm x 24mm
INA HK5022-RS bearing
50mm x 58mm x 22mm
INA HN5020 bearing
50mm x 58mm x 20mm
INA HN5025 bearing
50mm x 58mm x 25mm
INA IR50X55X25-XL bearing
50mm x 55mm x 25mm

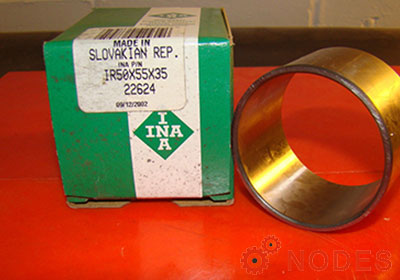

INA IR50X55X35-XL bearing
50mm x 55mm x 35mm
INA IR50X58X22-XL bearing
50mm x 58mm x 22mm

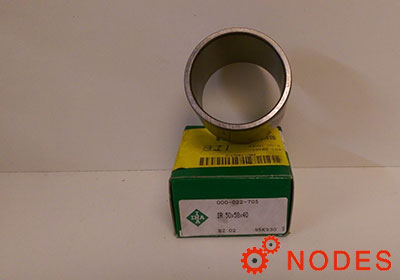

INA IR50X58X40-XL bearing
