INA SL192318-TB-XL roller bearings
Also known as : SL192318-TB-XL
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 64 mm
- Basic dynamic load rating: 620 kN
- Basic static load rating: 650 kN
INA SL192318-TB-XL Bearing
INA SL192318-TB-XL Bearing details

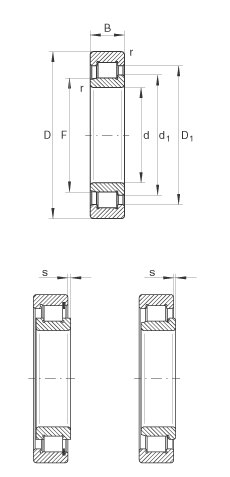

| model | SL192318-TB-XL |
|---|---|
| d | 90 mm |
| D | 190 mm |
| B | 64 mm |
| D1 | 152.5 mm |
| d1 | 117.5 mm |
| F | 105.26 mm |
| rmin | 3 mm |
| s | 4 mm, Axial displacement |
| Cr | 620000 N |
| C0r | 650000 N |
| Cur | 116000 N, Fatigue limit load, radial |
| Reference speed | 1760 1/min |
| Limiting speed | 2400 1/min |
| mass | 8.83 kg |
INA SL192318-TB-XL roller bearings, semi-locating bearing, full complement cylindrical roller set, self-retaining roller set, Cylindrical roller bearings.
INA SL192318-TB-XL bearing cross reference
INA SL014918 bearing
90mm x 125mm x 35mm
INA SL024918 bearing
90mm x 125mm x 35mm
INA SL045018-PP bearing
90mm x 140mm x 67mm
INA SL182218 bearing
90mm x 160mm x 40mm
INA SL182918-XL bearing
90mm x 125mm x 22mm
INA SL183018 bearing
90mm x 140mm x 37mm
