KAYDON KG120XP0 Bearing

KAYDON KG120XP0 thin section bearings

Also known as : KG120XP0

  • Inside Diameter: 12 inches
  • Outside Diameter: 14 inches
  • Width: 1 inches
  • Basic dynamic load rating: 13315 lbs
  • Basic static load rating: 53350 lbs

Inquire Now

KAYDON KG120XP0 Bearing

KAYDON KG120XP0 Bearing details

Kaydon part number KG120XP0
Bore 12.000 inches
Outside dia. 14.000 inches
Width 1 inches
Land dia. L1 12.742 inches
Land dia. L2 13.258 inches
Dynamic radial 13,315 lbs
Dynamic thrust 21,280 lbs
Dynamic moment 64,935 lbs
Static radial 21,340 lbs
Static thrust 53,350 lbs
Static moment 138,700 lbs
Approx. weight 9.300 lbs

As KAYDON bearings distributor, Nodes bearings have KAYDON KG120XP0 open thin section bearings in stock, Reali-Slim open bearings, KG series, Type X -- four-point contact.

related articles

Related numbers

KAYDON KA120AR0 bearing
12.000" x 12.500" x 0.25"

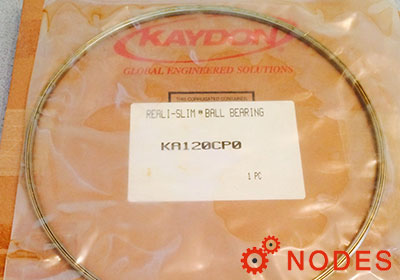

KAYDON KA120CP0 bearing
