NSK 22218EAE4 Bearing

NSK 22218EAE4 Spherical roller bearings

Also known as : 22218EAE4, 22218CC/W33

  • Inside Diameter: 90 mm
  • Outside Diameter: 160 mm
  • Width: 40 mm
  • Basic dynamic load rating: 360 kN
  • Basic static load rating: 395 kN

Inquire Now

NSK 22218EAE4 Bearing

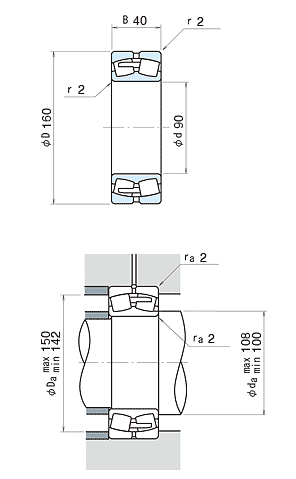

NSK 22218EAE4 Bearing details

model 22218EAE4
d 90 mm
D 160 mm
B 40.0 mm
rmin. 2.0 mm
Cr 360000 N
37000 kgf
C0r 395000 N
40000 kgf
Limiting speeds 3200 min-1 (Grease)
Limiting speeds 4000 min-1 (Oil)
da min 100 mm
da max 108.000 mm
Da max 150 mm
Da min 142 mm
ra 2.0 mm
Constant 0.24
Y2 4.3 Axial Load Factors
Y3 2.9 Axial Load Factors
Y0 2.8 Axial Load Factors
Mass 3.30 kg (approx.)

NSK 22218EAE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
