NSK 22328CAMKE4C3 Bearing

NSK 22328CAMKE4C3 Spherical roller bearings

Also known as : 22328CAMKE4C3, 22328CCK/W33C3

  • Inside Diameter: 140 mm
  • Outside Diameter: 300 mm
  • Width: 102 mm
  • Basic dynamic load rating: 1160 kN
  • Basic static load rating: 1590 kN

Inquire Now

NSK 22328CAMKE4C3 Bearing

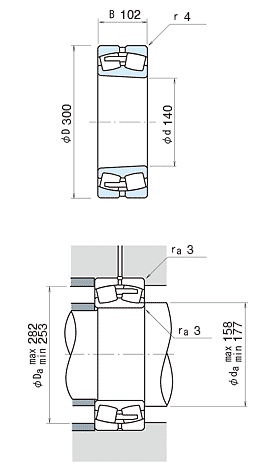

NSK 22328CAMKE4C3 Bearing details

model 22328CAMKE4C3
d 140 mm
D 300 mm
B 102.0 mm
rmin. 4.0 mm
Cr 1160000 N
118000 kgf
C0r 1590000 N
162000 kgf
Limiting speeds 1200 min-1 (Grease)
Limiting speeds 1500 min-1 (Oil)
da min 158 mm
da max 177 mm
Da max 282 mm
Da min 253 mm
ra 3.0 mm
Constant 0.35
Y2 2.9 Axial Load Factors
Y3 1.9 Axial Load Factors
Y0 1.9 Axial Load Factors
Mass 35.40 kg (approx.)

NSK 22328CAMKE4C3 roller bearings with Tapered Bore, spherical roller bearing, double-Row.
