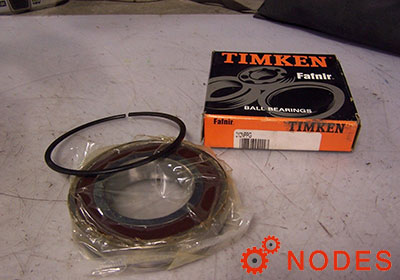

TIMKEN 212K Bearing

TIMKEN Fafnir 212K Deep groove ball bearings | 60x110x22mm

Also known as : 212K

  • Inside Diameter: 60 mm
  • Outside Diameter: 110 mm
  • Width: 22 mm
  • Basic dynamic load rating: 62.1 kN
  • Basic static load rating: 35.5 kN

Inquire Now

TIMKEN 212K Bearing

TIMKEN 212K Bearing details

Bearing Number 212K
Brand TIMKEN
Type Deep groove ball bearings
Design Units METRIC
Ball Type Steel
Bearing Weight 0.807 Kg
1.78 lb
d - Bore 60.000 mm
2.3622 in
D - Outer Diameter 110.000 mm
4.3307 in
Bearing Width 22.000 mm
0.8661 in
do - Ball Diameter 15.87500 mm
0.62500 in
Ce - Dynamic Radial Rating1 62100 N
13400 lbf
C0 - Static Radial Rating 35500 N
8000 lbf
Limiting Speed (Grease) 3530 rpm
Limiting Speed (Oil) 4120 rpm
R - Inner Ring "To Clear" Radius2 1.500 mm
0.059 in
r - Outer Ring "To Clear" Radius3 1.500 mm
0.059 in
da - Inner Ring Backing Diameter 67.800 mm
2.670 in
Da - Outer Ring Backing Diameter 101.100 mm
3.980 in

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 212K bearings in stock. Radial ball bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type bearing has a deep-groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation.
