FAG 1217-K-TVH-C3 bearings
Also known as : 1217-K-TVH-C3
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 28 mm
- Basic dynamic load rating: 49.5 kN
- Basic static load rating: 20.6 kN
FAG 1217-K-TVH-C3 Bearing

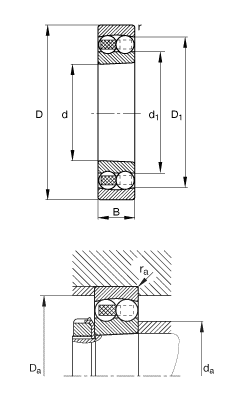

FAG 1217-K-TVH-C3 Bearing details
| d | 85 mm | |
|---|---|---|
| D | 150 mm | |
| B | 28 mm | |
| D1 | 130,4 mm | |
| Da max | 139 mm | |
| d1 | 107,5 mm | |
| da max | 105 mm | |
| da min | 96 mm | |
| ra max | 2 mm | |
| rmin | 2 mm | |
| m | 2,03 kg | Mass |
| Cr | 49500 N | Basic dynamic load rating, radial |
| C0r | 20600 N | Basic static load rating, radial |
| e | 0,17 | |
| Y1 | 3,73 | |
| Y2 | 5,78 | |
| Y0 | 3,91 | |
| nG | 4900 1/min | Limiting speed |
| nB | 4950 1/min | Reference speed |
| Cur | 1180 N | Fatigue limit load, radial |
| H217 | Designation, adapter sleeve |
As FAG bearing distributor, Nodes bearings have FAG 1217-K-TVH-C3 self aligning ball bearings in stock, main dimensions to DIN 630, with tapered bore, taper 1:12.
