FAG 1312-TVH Bearing

FAG 1312-TVH bearings

Also known as : 1312-TVH

  • Inside Diameter: 60 mm
  • Outside Diameter: 130 mm
  • Width: 31 mm
  • Basic dynamic load rating: 58 kN
  • Basic static load rating: 20.6 kN

Inquire Now

FAG 1312-TVH Bearing

FAG 1312-TVH Bearing details

d 60 mm
D 130 mm
B 31 mm
D1 112,2 mm
Da max 118 mm
d1 87 mm
da min 72 mm
ra max 2,1 mm
rmin 2,1 mm
m 1,97 kg  Mass
Cr 58000 N  Basic dynamic load rating, radial
C0r 20600 N  Basic static load rating, radial
e 0,23
Y1 2,77
Y2 4,28
Y0 2,9
nG 5500 1/min  Limiting speed
nB 5200 1/min  Reference speed
Cur 1280 N  Fatigue limit load, radial

As FAG bearing distributor, Nodes bearings have FAG 1312-TVH self aligning ball bearings in stock, main dimensions to DIN 630.

FAG 1312-TVH bearing cross reference

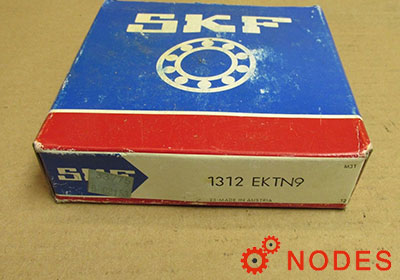

SKF 1312EKTN9 bearing
60mm x 130mm x 31mm
FAG 1212-TVH bearing
60mm x 110mm x 22mm
FAG 2212-TVH bearing
60mm x 110mm x 28mm
FAG 2312-TVH bearing
60mm x 130mm x 46mm
FAG 1212-K-TVH-C3 bearing
60mm x 110mm x 22mm
FAG 1312-K-TVH-C3 bearing
60mm x 130mm x 31mm
FAG 2212-K-TVH-C3 bearing
60mm x 110mm x 28mm
FAG 2312-K-TVH-C3 bearing
60mm x 130mm x 46mm
FAG 2212-2RS-TVH bearing
60mm x 110mm x 28mm
FAG 11212-TVH bearing
60mm x 110mm x 62mm
