FAG 2210-2RS-TVH Bearing

FAG 2210-2RS-TVH bearings

Also known as : 2210-2RS-TVH

  • Inside Diameter: 50 mm
  • Outside Diameter: 90 mm
  • Width: 23 mm
  • Basic dynamic load rating: 22.9 kN
  • Basic static load rating: 8 kN

Inquire Now

FAG 2210-2RS-TVH Bearing

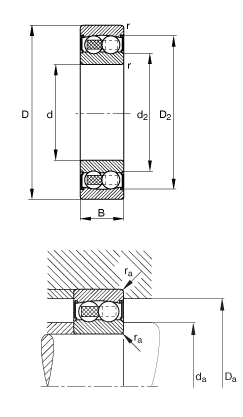

FAG 2210-2RS-TVH Bearing details

d 50 mm
D 90 mm
B 23 mm
D2 79 mm
Da max 83 mm
d2 60,5 mm
da min 57 mm
ra max 1 mm
rmin 1,1 mm
m 0,606 kg  Mass
Cr 22900 N  Basic dynamic load rating, radial
C0r 8000 N  Basic static load rating, radial
e 0,2
Y1 3,17
Y2 4,9
Y0 3,32
nG 4250 1/min  Limiting speed
Cur 500 N  Fatigue limit load, radial

As FAG bearing distributor, Nodes bearings have FAG 2210-2RS-TVH self aligning ball bearings in stock, main dimensions to DIN 630, lip seals on both sides.
