FAG 7317-B-XL-MP Bearing

FAG 7317-B-XL-MP Angular contact ball bearings

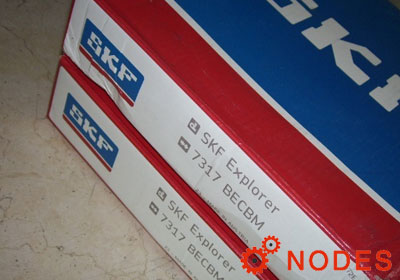

Also known as : 7317-B-XL-MP, 7317BECBM

  • Inside Diameter: 85 mm
  • Outside Diameter: 180 mm
  • Width: 41 mm
  • Basic dynamic load rating: 167 kN
  • Basic static load rating: 138 kN

Inquire Now


FAG 7317-B-XL-MP Bearing

FAG 7317-B-XL-MP Bearing details

model 7317-B-XL-MP
d 85 mm
D 180 mm
B 41 mm
a 76 mm
D1 144 mm
Da max 166 mm
Db max 173 mm
d1 122 mm
da min 99 mm
r1 min 1.1 mm
ra max 2.5 mm
ra1 max 1 mm
rmin 3 mm
Contact angle 40°
Cr 167000 N
C0r 138000 N
Limiting speed 5800 1/min
Reference speed 4100 1/min
Cur 8100 N Fatigue limit load, radial
mass 4.696 kg

FAG 7317-B-XL-MP ball bearings, Angular contact ball bearing, contact angle α = 40°.
