FAG B7024-E-2RSD-T-P4S Bearing

FAG B7024-E-2RSD-T-P4S spindle bearings | 120x180x28mm

Also known as : B7024-E-2RSD-T-P4S

  • Inside Diameter: 120 mm
  • Outside Diameter: 180 mm
  • Width: 28 mm
  • Basic dynamic load rating: 109 kN
  • Basic static load rating: 78 kN

Inquire Now


FAG B7024-E-2RSD-T-P4S Bearing

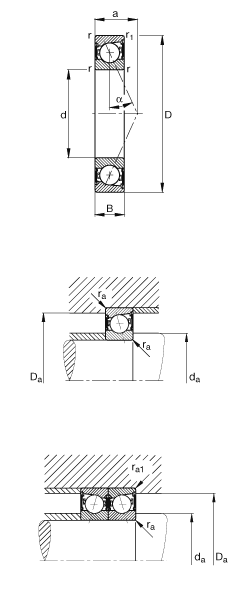

FAG B7024-E-2RSD-T-P4S Bearing details

Number B7024-E-2RSD-T-P4S
Type FAG spindle bearings, adjusted, in pairs or sets
d 120 mm
D 180 mm
B 28 mm
a 49 mm
Da 169 mm  Tolerance: H12
da 131 mm  Tolerance: h12
r1 min 2 mm
ra max 2 mm
ra1 max 1 mm
rmin 2 mm
α 25 °  Contact angle
m 2,15 kg  ≈ Mass
Cr 109000 N  Basic dynamic load rating, radial
C0r 78000 N  Basic static load rating, radial
Cur 6500 N  Fatigue limit load, radial
nG Fett 6700 1/min  Limiting speed for grease lubrication

The limiting speeds are based on elastically preloaded single bearings.
FV L 983 N  Preload force
FV M 3298 N  Preload force
FV H 6830 N  Preload force
KaE L 2860 N  Lift-off force
KaE M 9902 N  Lift-off force
KaE H 21158 N  Lift-off force
ca L 290 N/µm  Axial rigidity
ca M 459 N/µm  Axial rigidity
ca H 618 N/µm  Axial rigidity

Nodes bearings have FAG B7024-E-2RSD-T-P4S spindle bearings in stock, FAG bearings, precision bearings, adjusted, in pairs or sets, contact angle α = 25°, lip seals on both sides, non-contact, restricted tolerances.
