FAG 22212-E1-XL Spherical roller bearings
Also known as : 22212-E1-XL, 22212E, 22212EAE4
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 28 mm
- Basic dynamic load rating: 160 kN
- Basic static load rating: 155 kN
FAG 22212-E1-XL Bearing
FAG 22212-E1-XL Bearing details
| model | 22212-E1-XL |
|---|---|
| d | 60 mm |
| D | 110 mm |
| B | 28 mm |
| D1 | 98.7 mm |
| Da max | 101 mm |
| d2 | 71.6 mm |
| da min | 69 mm |
| ra max | 1.5 mm |
| rmin | 1.5 mm |
| Cr | 160000 N |
| C0r | 155000 N |
| Limiting speed | 8100 1/min |
| Reference speed | 4550 1/min |
| Cur | 20200 N Fatigue limit load, radial |
| e | 0.23 |
| Y1 | 2.98 |
| Y2 | 4.44 |
| Y0 | 2.92 |
| mass | 1.12 kg |
FAG 22212-E1-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
FAG 22212-E1-XL bearing cross reference
FAG 21312-E1-XL bearing
60mm x 130mm x 31mm
FAG 22312-E1-XL bearing
60mm x 130mm x 46mm

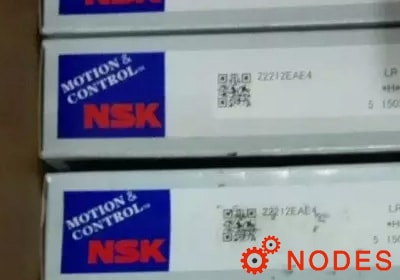

NSK 22212EAE4 bearing
60mm x 110mm x 28.0mm

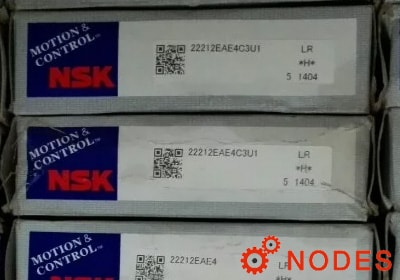

NSK 22212EAE4C3 bearing
60mm x 110mm x 28.0mm

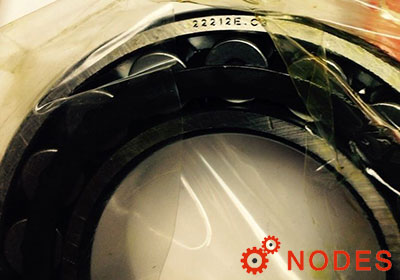

SKF 22212E/C3 bearing
60mm x 110mm x 28mm
SKF 22212EK bearing
60mm x 110mm x 28mm
NSK 22212EAKE4 bearing
60mm x 110mm x 28.0mm
FAG 21312-E1-XL-K bearing
60mm x 130mm x 31mm
FAG 22212-E1-XL-K bearing
60mm x 110mm x 28mm
FAG 22312-E1-XL-K bearing
60mm x 130mm x 46mm
FAG WS22212-E1-XL-2RSR bearing
60mm x 110mm x 34mm
