FAG 22320-E1-XL Bearing

FAG 22320-E1-XL Spherical roller bearings

Also known as : 22320-E1-XL, 22320E, 22320EAE4

  • Inside Diameter: 100 mm
  • Outside Diameter: 215 mm
  • Width: 73 mm
  • Basic dynamic load rating: 810 kN
  • Basic static load rating: 920 kN

Inquire Now

FAG 22320-E1-XL Bearing

FAG 22320-E1-XL Bearing details

model 22320-E1-XL
d 100 mm
D 215 mm
B 73 mm
D1 184.7 mm
Da max 201 mm
d2 130.2 mm
da min 114 mm
ra max 2.5 mm
rmin 3 mm
Cr 810000 N
C0r 920000 N
Limiting speed 3300 1/min
Reference speed 2380 1/min
Cur 75000 N Fatigue limit load, radial
e 0.33
Y1 2.03
Y2 3.02
Y0 1.98
mass 13.1 kg

FAG 22320-E1-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.

related articles

FAG 22320-E1-XL bearing cross reference

FAG 21320-E1-XL-TVPB bearing
100mm x 215mm x 47mm
FAG 22220-E1-XL bearing
100mm x 180mm x 46mm
FAG 23220-E1-XL-TVPB bearing
100mm x 180mm x 60,3mm
FAG 23120-E1A-XL-M bearing
100mm x 165mm x 52mm

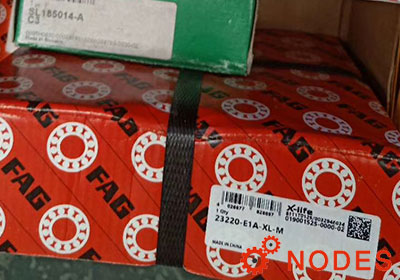

FAG 23220-E1A-XL-M bearing
100mm x 180mm x 60.3mm

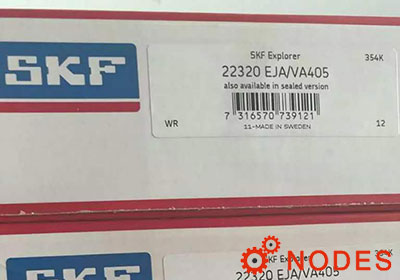

SKF 22320EJA/VA405 bearing
100mm x 215mm x 73mm

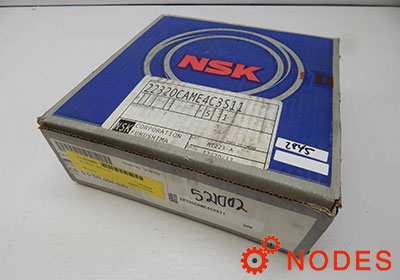

NSK 22320CAME4C3 bearing
