FAG 23032-E1A-XL-M Spherical roller bearings
Also known as : 23032-E1A-XL-M, 23032CAE4
- Inside Diameter: 160 mm
- Outside Diameter: 240 mm
- Width: 60 mm
- Basic dynamic load rating: 720 kN
- Basic static load rating: 1010 kN
FAG 23032-E1A-XL-M Bearing
FAG 23032-E1A-XL-M Bearing details
| model | 23032-E1A-XL-M |
|---|---|
| d | 160 mm |
| D | 240 mm |
| B | 60 mm |
| D1 | 219.9 mm |
| Da max | 229.8 mm |
| da min | 170.2 mm |
| ds | 6.3 mm |
| ns | 12.2 mm |
| ra max | 2.1 mm |
| rmin | 2.1 mm |
| Cr | 720000 N |
| C0r | 1010000 N |
| Limiting speed | 3050 1/min |
| Reference speed | 2060 1/min |
| Cur | 95000 N Fatigue limit load, radial |
| e | 0.22 |
| Y1 | 3.1 |
| Y2 | 4.62 |
| Y0 | 3.03 |
| mass | 9.5 kg |
FAG 23032-E1A-XL-M roller bearings, spherical roller bearing, main dimensions to DIN 635-2.
FAG 23032-E1A-XL-M bearing cross reference
FAG 22232-E1-XL bearing
160mm x 290mm x 80mm
FAG 22332-BE-XL bearing
160mm x 340mm x 114mm
FAG 23032-E1-XL-TVPB bearing
160mm x 240mm x 60mm
FAG 23232-E1-XL-TVPB bearing
160mm x 290mm x 104mm
FAG 24032-BE-XL bearing
160mm x 240mm x 80mm
FAG 24132-BE-XL bearing
160mm x 270mm x 109mm
FAG 23132-E1A-XL-M bearing
160mm x 270mm x 86mm
FAG 23232-E1A-XL-M bearing
160mm x 290mm x 104mm

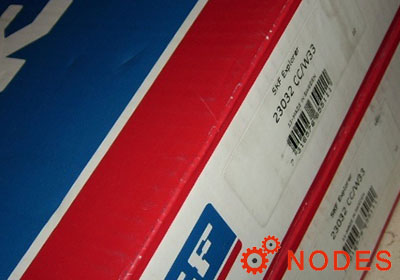

SKF 23032CC/W33 bearing
