FAG 23056-BE-XL Spherical roller bearings
Also known as : 23056-BE-XL, 23056E, 23056EAE4
- Inside Diameter: 280 mm
- Outside Diameter: 420 mm
- Width: 106 mm
- Basic dynamic load rating: 1780 kN
- Basic static load rating: 2850 kN
FAG 23056-BE-XL Bearing
FAG 23056-BE-XL Bearing details
| model | 23056-BE-XL |
|---|---|
| d | 280 mm |
| D | 420 mm |
| B | 106 mm |
| D1 | 379.2 mm |
| Da max | 405.4 mm |
| d2 | 314.3 mm |
| da min | 294.6 mm |
| ra max | 3 mm |
| rmin | 4 mm |
| Cr | 1780000 N |
| C0r | 2850000 N |
| Limiting speed | 1740 1/min |
| Reference speed | 1090 1/min |
| Cur | 255000 N Fatigue limit load, radial |
| e | 0.22 |
| Y1 | 3.01 |
| Y2 | 4.48 |
| Y0 | 2.94 |
| mass | 50.9 kg |
FAG 23056-BE-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
FAG 23056-BE-XL bearing cross reference
FAG 24056-BE-XL bearing
280mm x 420mm x 140mm
FAG 24156-BE-XL bearing
280mm x 460mm x 180mm
FAG 22256-BEA-XL-MB1 bearing
280mm x 500mm x 130mm
FAG 22356-BEA-XL-MB1 bearing
280mm x 580mm x 175mm
FAG 23256-BEA-XL-MB1 bearing
280mm x 500mm x 176mm

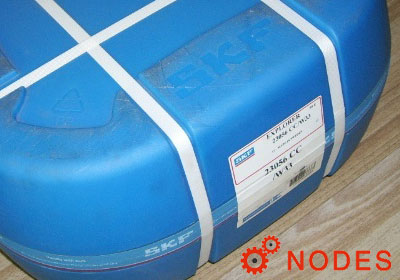

SKF 23056CC/W33 bearing
280mm x 420mm x 106mm
NSK 23056CAKE4 bearing
280mm x 420mm x 106.0mm
NSK 23056CAE4 bearing
280mm x 420mm x 106.0mm
FAG 22256-BEA-XL-K-MB1 bearing
280mm x 500mm x 130mm
FAG 22356-BEA-XL-K-MB1 bearing
280mm x 580mm x 175mm
FAG 23056-BE-XL-K bearing
280mm x 420mm x 106mm
