FAG N319-E-XL-M1 Cylindrical roller bearings
Also known as : N319-E-XL-M1, N319ECM
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 45 mm
- Basic dynamic load rating: 390 kN
- Basic static load rating: 380 kN
FAG N319-E-XL-M1 Bearing

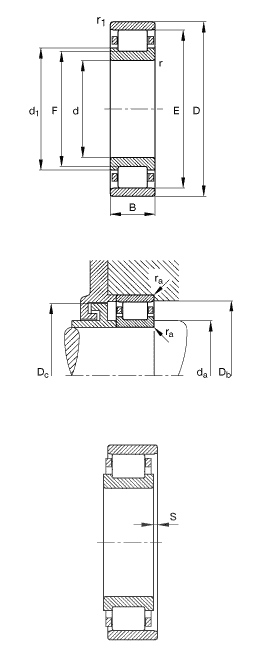

FAG N319-E-XL-M1 Bearing details
| model | N319-E-XL-M1 |
|---|---|
| d | 95 mm |
| D | 200 mm |
| B | 45 mm |
| Da max | 186 mm |
| Db min | 179 mm |
| Dc max | 176 mm |
| d1 | 132 mm |
| da min | 109 mm |
| E | 177.5 mm |
| F | 121.5 mm |
| r1 min | 3 mm |
| ra max | 2.5 mm |
| ra1 max | 2.5 mm |
| rmin | 3 mm |
| s | 1.4 mm, Axial displacement facility from central position |
| Cr | 390000 N, Basic dynamic load rating, radial |
| C0r | 380000 N, Basic static load rating, radial |
| Limiting speed | 5300 1/min |
| Reference speed | 3550 1/min |
| Cur | 64000 N, Fatigue limit load, radial |
| mass | 7.12 kg |
FAG N319-E-XL-M1 roller bearings, cylindrical roller bearings, non-locating bearing, separable, with cage.
