FAG NU1032-XL-M1 Cylindrical roller bearings
Also known as : NU1032-XL-M1, NU1032ECM
- Inside Diameter: 160 mm
- Outside Diameter: 240 mm
- Width: 38 mm
- Basic dynamic load rating: 290 kN
- Basic static load rating: 355 kN
FAG NU1032-XL-M1 Bearing

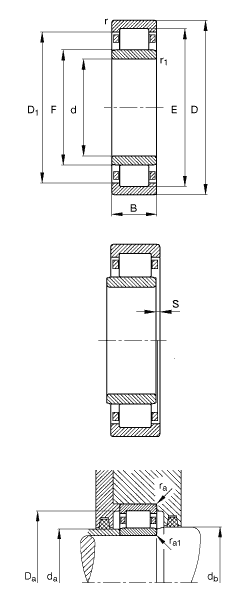

FAG NU1032-XL-M1 Bearing details
| model | NU1032-XL-M1 |
|---|---|
| d | 160 mm |
| D | 240 mm |
| B | 38 mm |
| D1 | 212.9 mm |
| Da max | 230 mm |
| da max | 178 mm |
| da min | 168 mm |
| db min | 184 mm |
| E | 220 mm |
| F | 180 mm |
| r1 min | 1.5 mm |
| ra max | 2.1 mm |
| ra1 max | 1.5 mm |
| rmin | 2.1 mm |
| s | 4.3 mm, Axial displacement facility from central position |
| Cr | 290000 N, Basic dynamic load rating, radial |
| C0r | 355000 N, Basic static load rating, radial |
| Limiting speed | 4650 1/min |
| Reference speed | 3000 1/min |
| Cur | 43000 N, Fatigue limit load, radial |
| mass | 5.92 kg |
FAG NU1032-XL-M1 roller bearings, cylindrical roller bearings, non-locating bearing, separable, with cage.
